Clansman Ground Spike Antenna
5820-99-620-5950

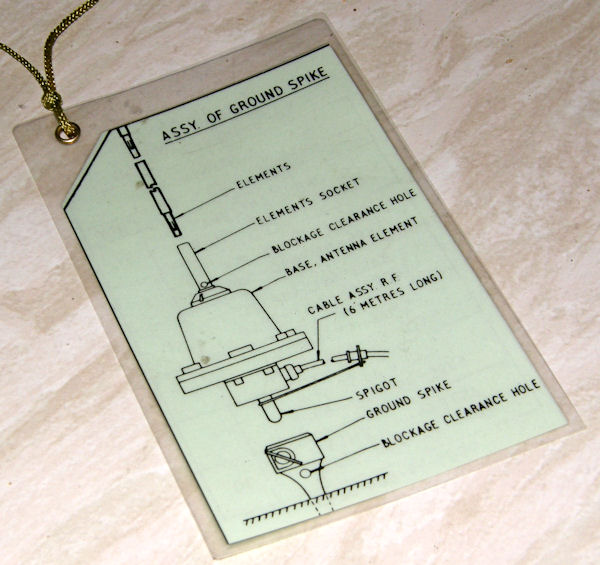

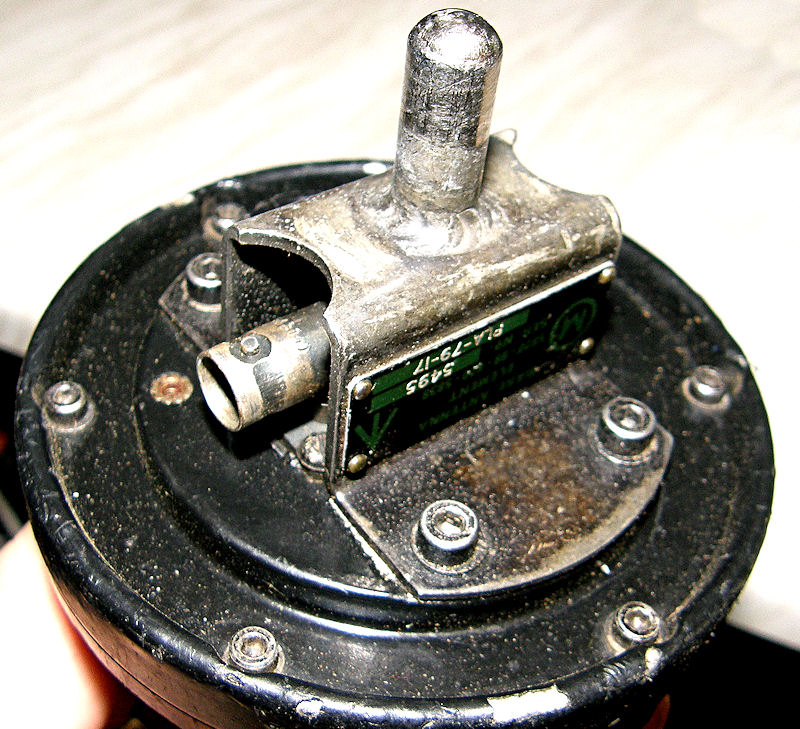

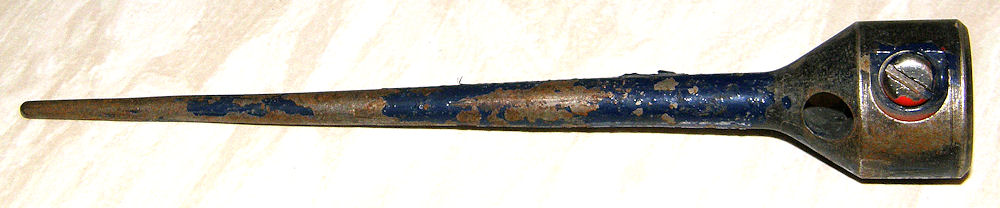

The Clansman VHF Ground Spike Antenna “GSA” kit is a man-portable ground mounted antenna for use with the Clansman PRC-350, PRC-351, and PRC-352 radio stations. The GSA can quickly be assembled on a level ground. Maximum power handling is
25 Watts.


Click on images for full size Photo

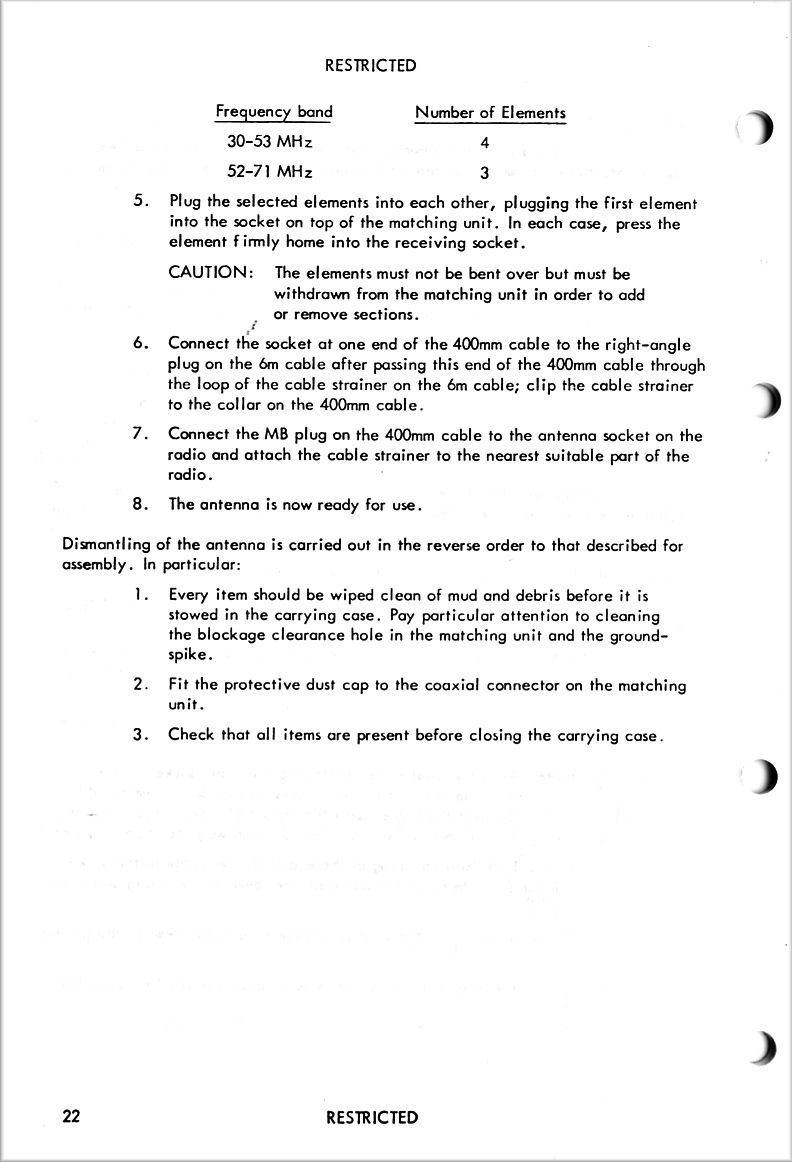

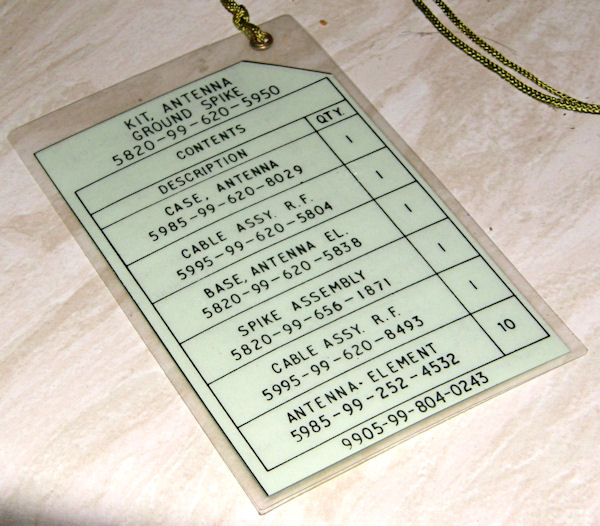

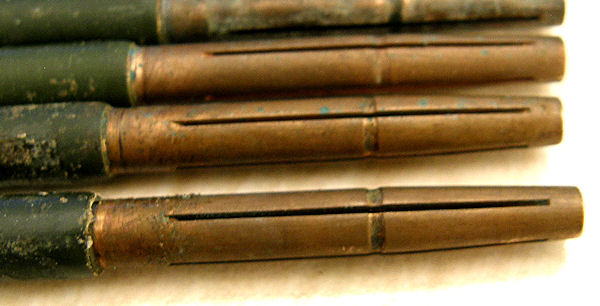

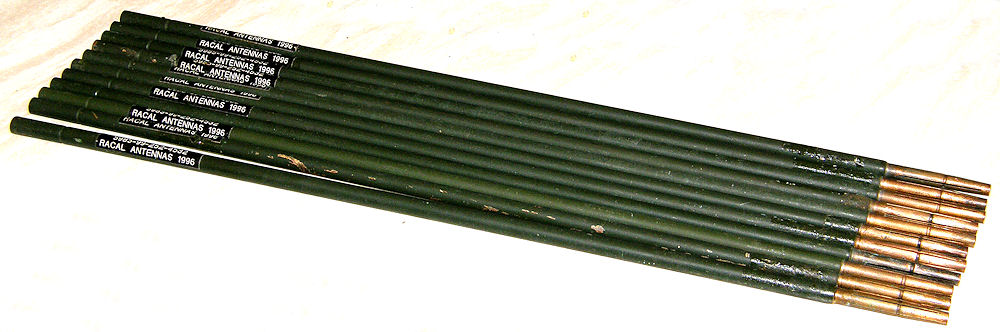

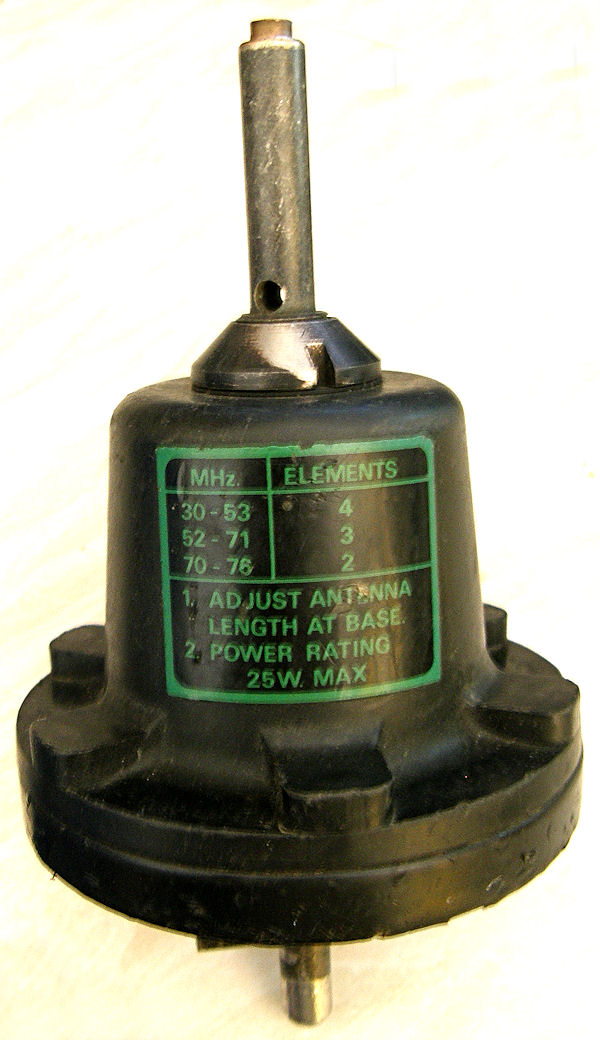

The kit was supplied originally with 5 rods, 4 + 1 spare element and 2, 3 or 4 could be fitted dependent on the frequency range being used. Later kits could be supplied with half size rods and 10 were provided,  they would be used in 4, 6 or 8 rod combinations. These shorter rods are the ones illustrated here. They are each 12 inches long, hence the normal sizes used are

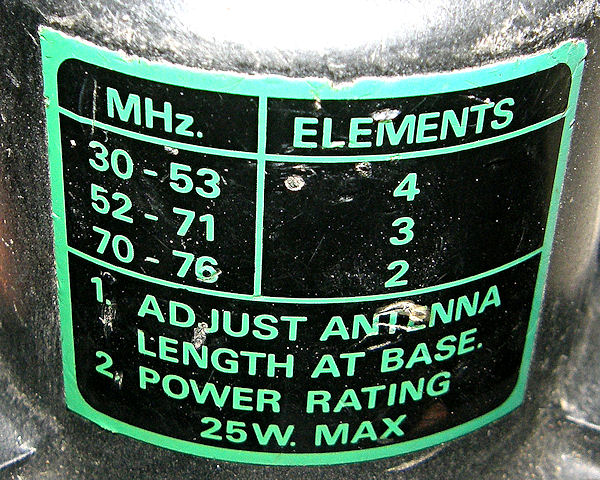

70-76 MHz - 4ft:   52-71 MHz - 6ft:   30-53 MHz - 8ft.
