This is a section of photographs of a fantastic Lightweight
re-build undertaken by Jeff Case, East Granby, Connecticut USA. It shows some of the restored/refurbished/new items that went into the rebuild. A separate page shows the overall rebuild. The photos in this section have been adjusted to try and give the maximum detail available rather than reproducing the original quality. |
|||
| Click on images below for full size Photo | |||
 |
 |
 |
 |

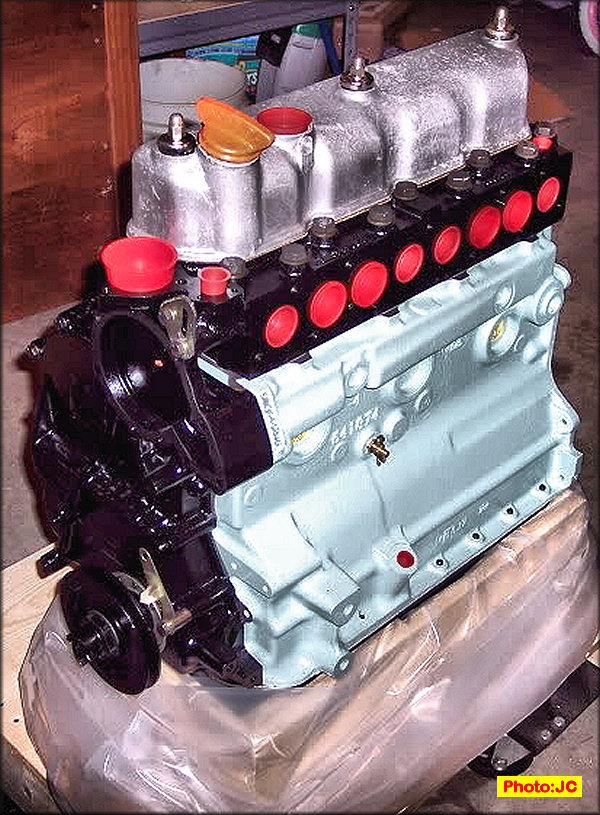

| Turner rebuilt long-block | |||
 |
 |
 |
|

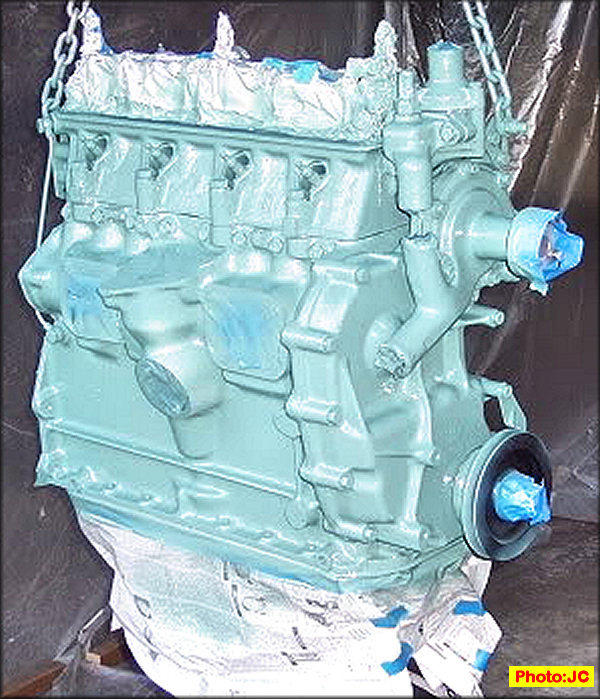

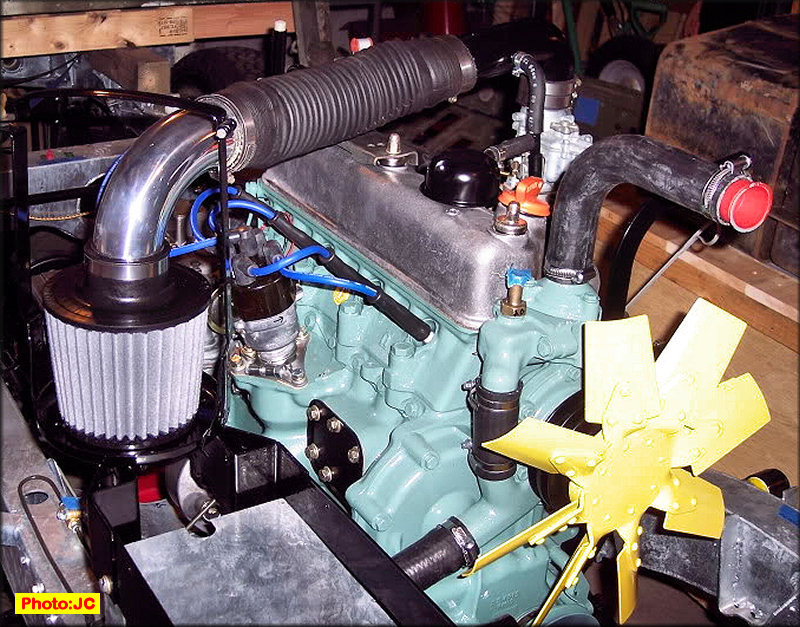

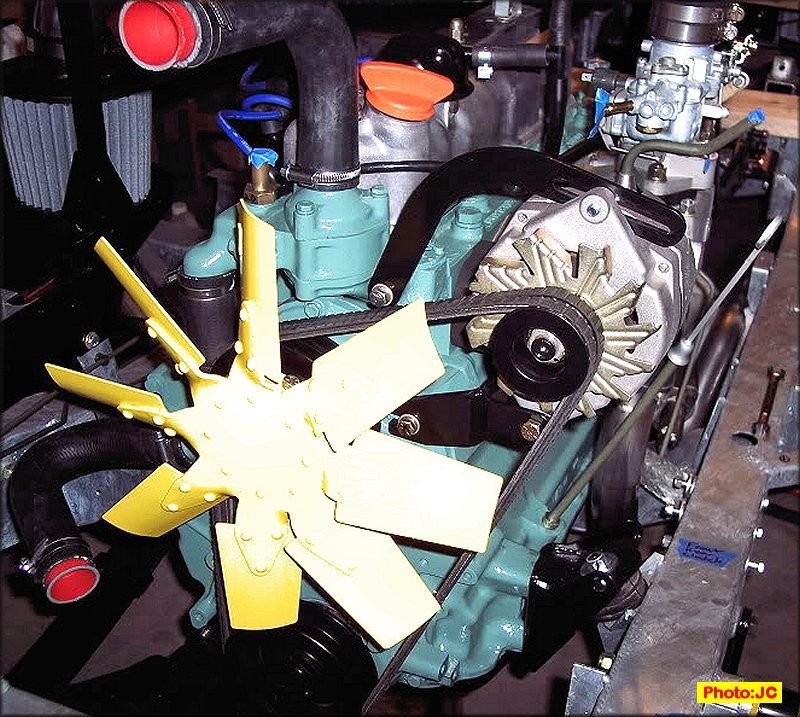

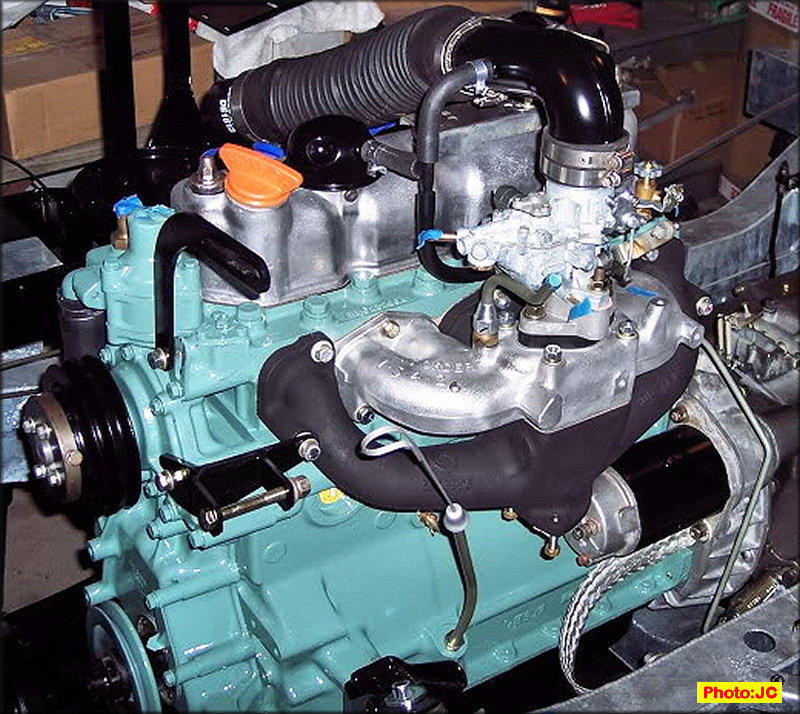

| Engine re-sprayed for a more authentic single-color paint job | |||
 |
 |
 |
 |
| Bulkhead lower and upper | |||
 |
 |
 |
 |
|

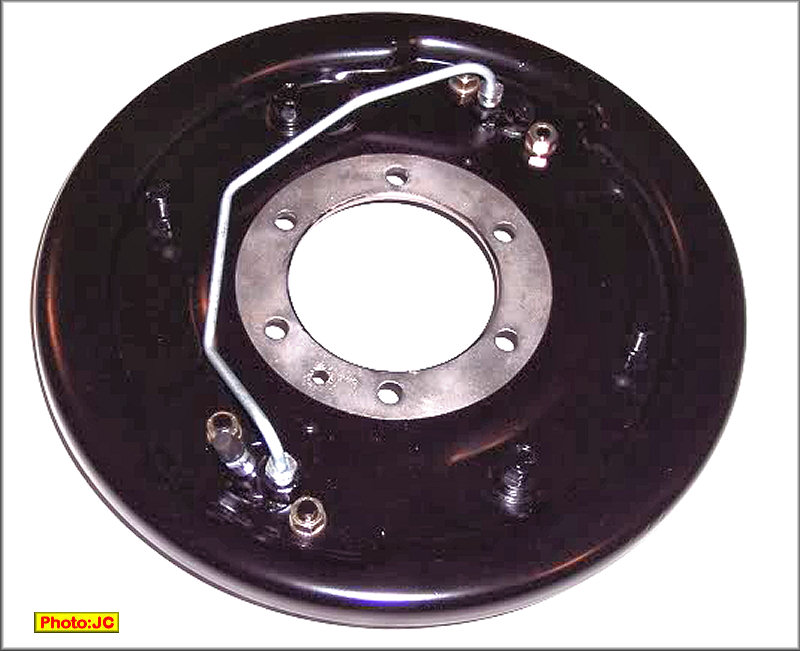

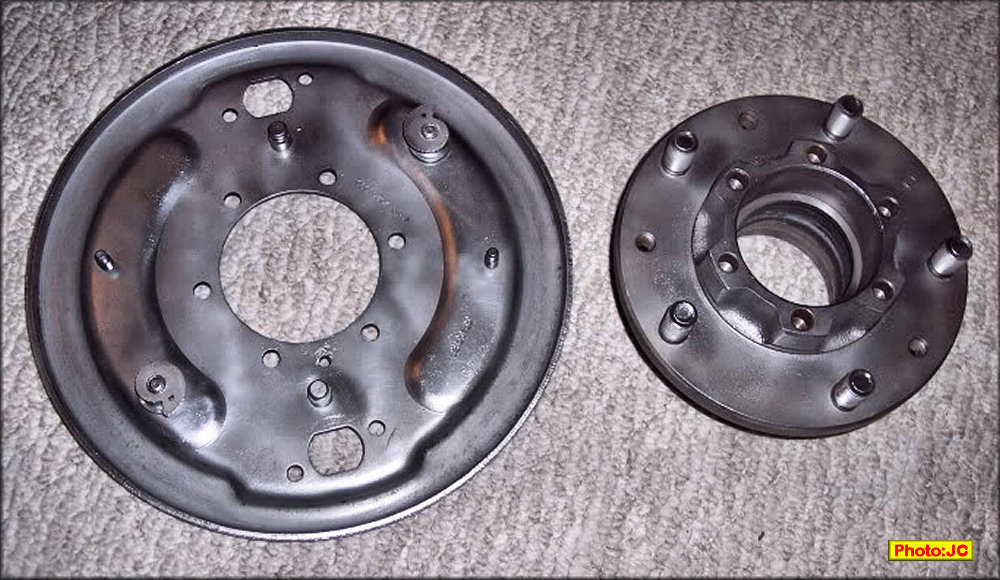

Brake backing plates assembled with new
steady posts, wheel cylinders & lines |
|||
 |
 |
 |
 |

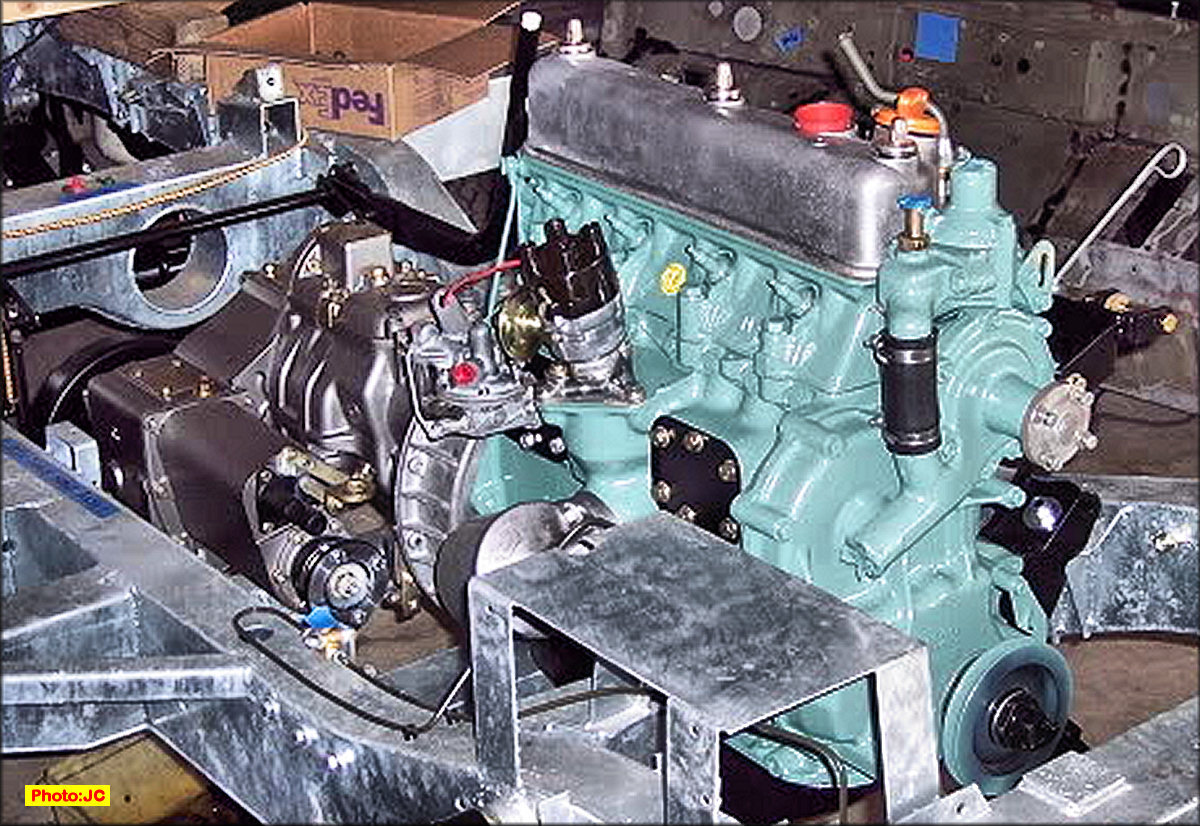

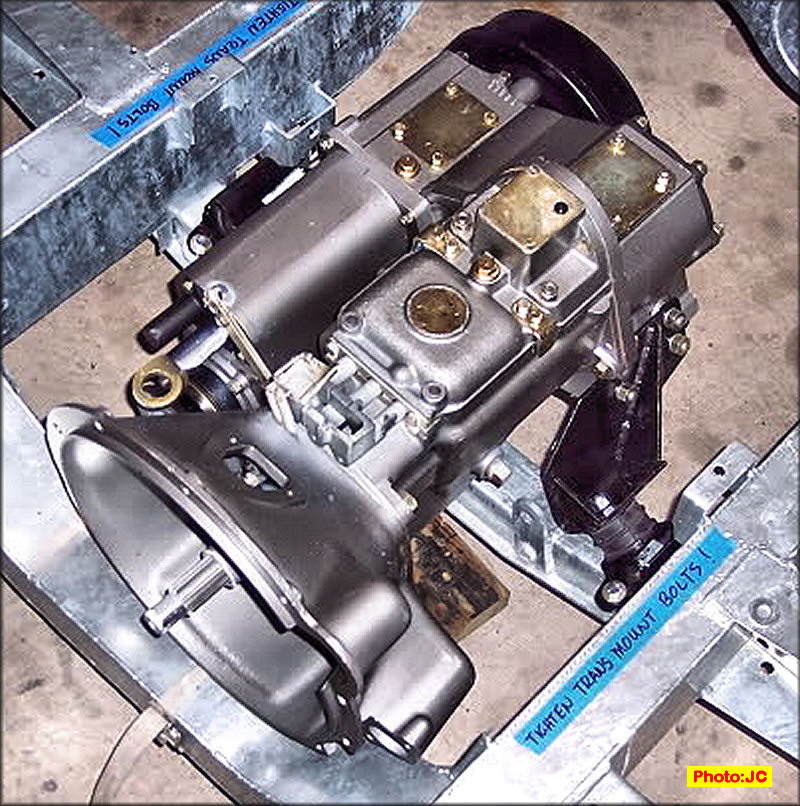

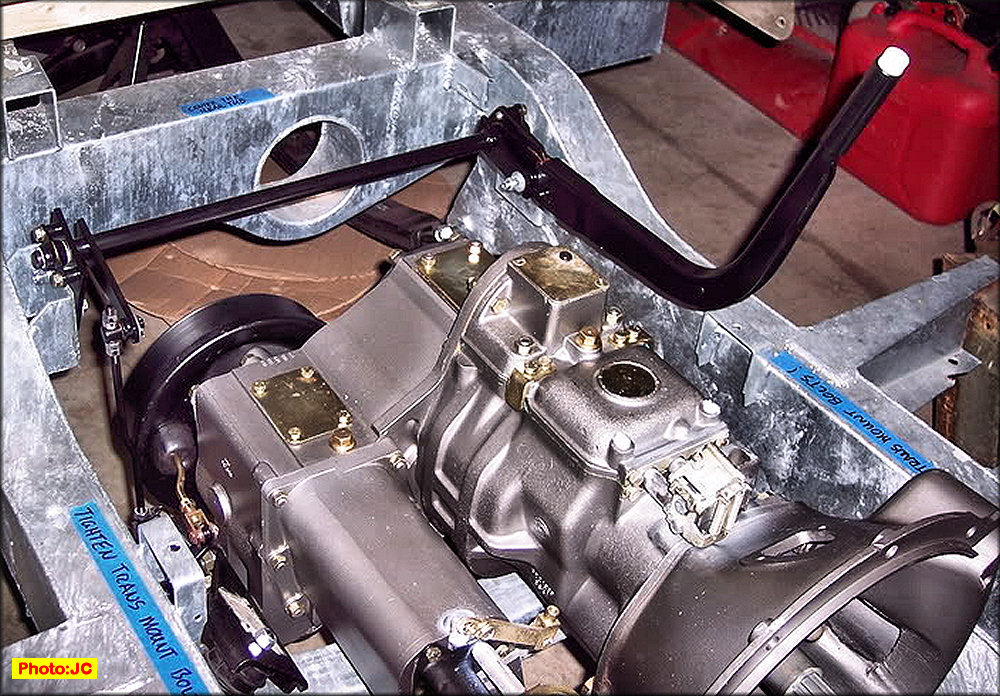

| Rebuilt transmission at home in the chassis | |||
 |
 |
 |
 |
|

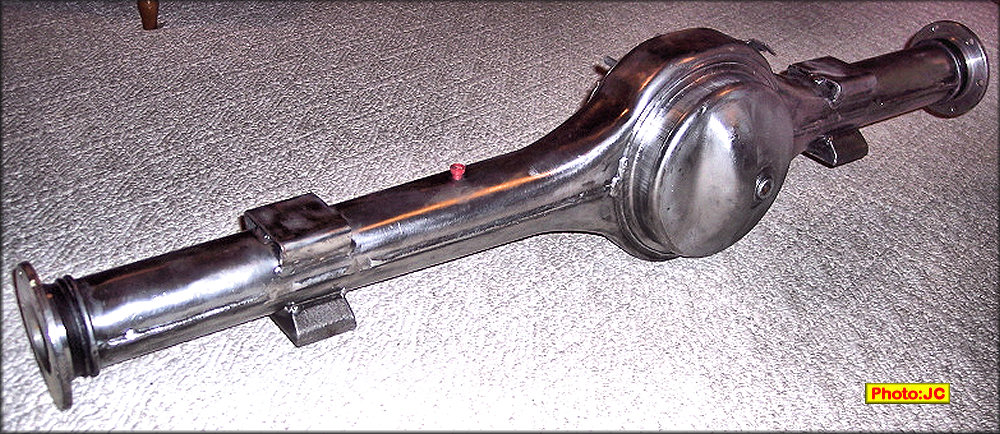

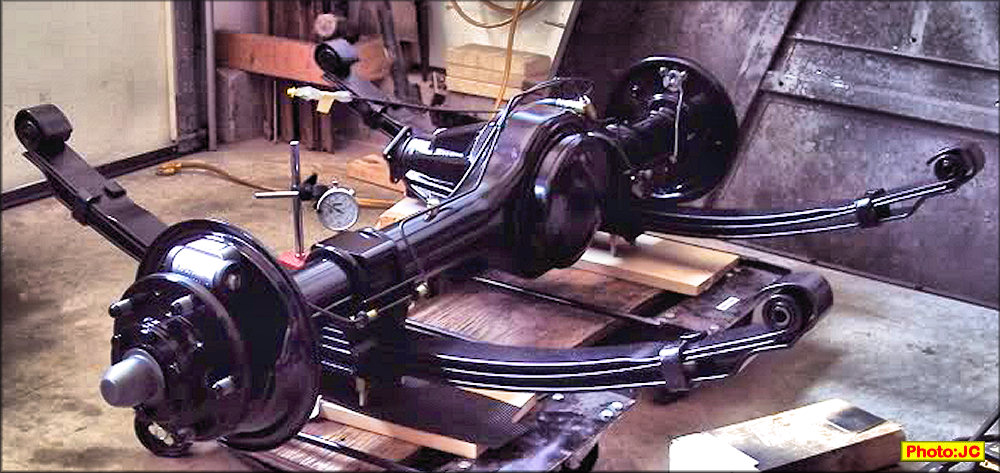

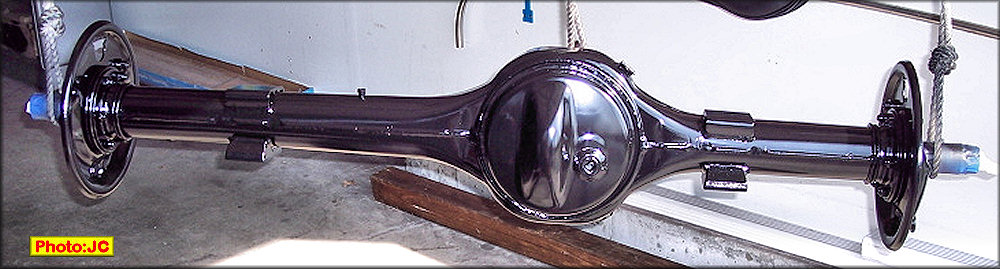

Stub axles and brake backing plates installed on the rear axle
case. After priming & painting |

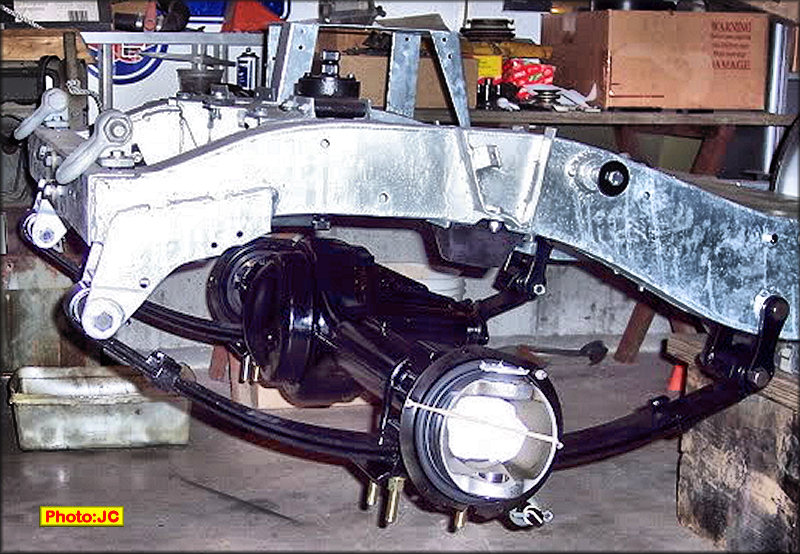

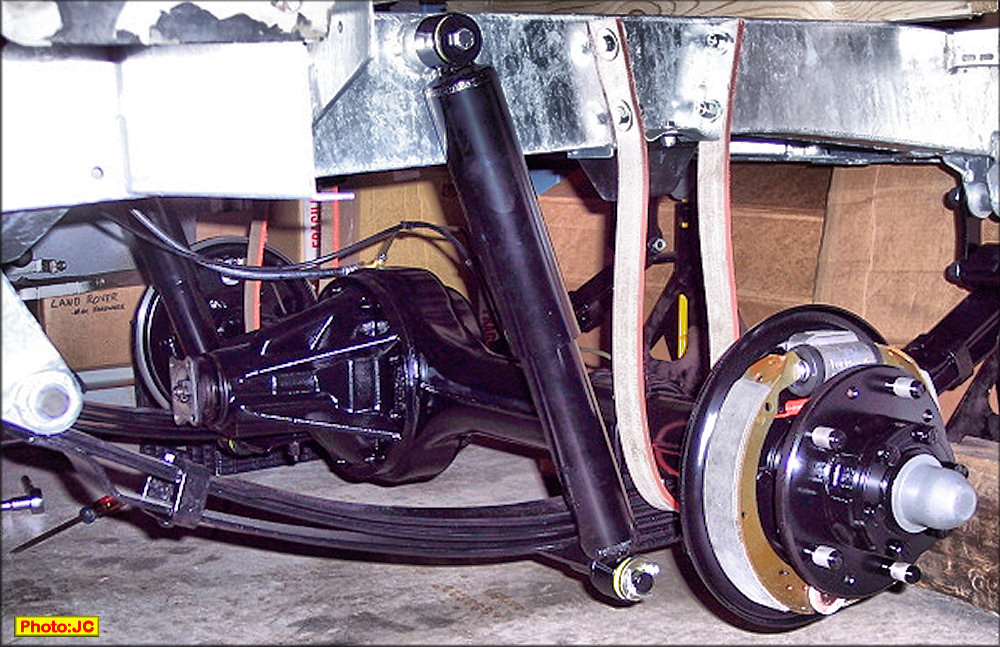

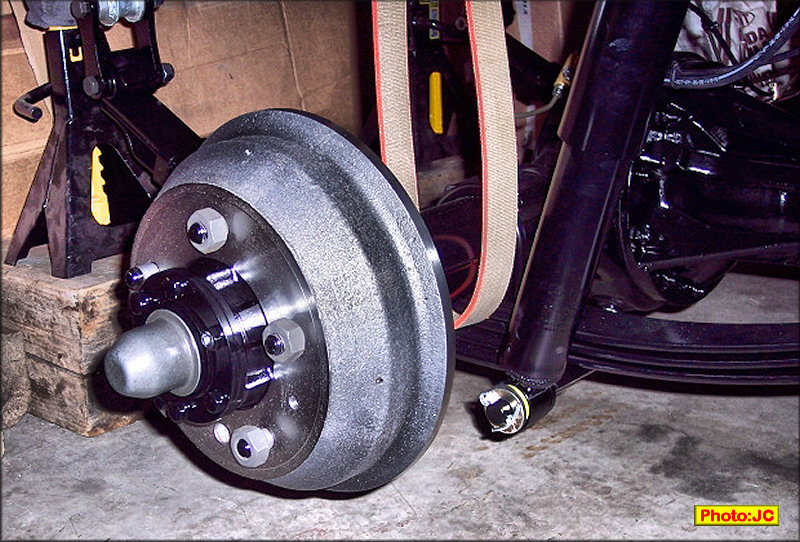

U-Bolts torqued & trimmed, heavy-duty shocks
installed, check (limit) straps on, and new brakes installed |
||
 |
 |
 |
 |

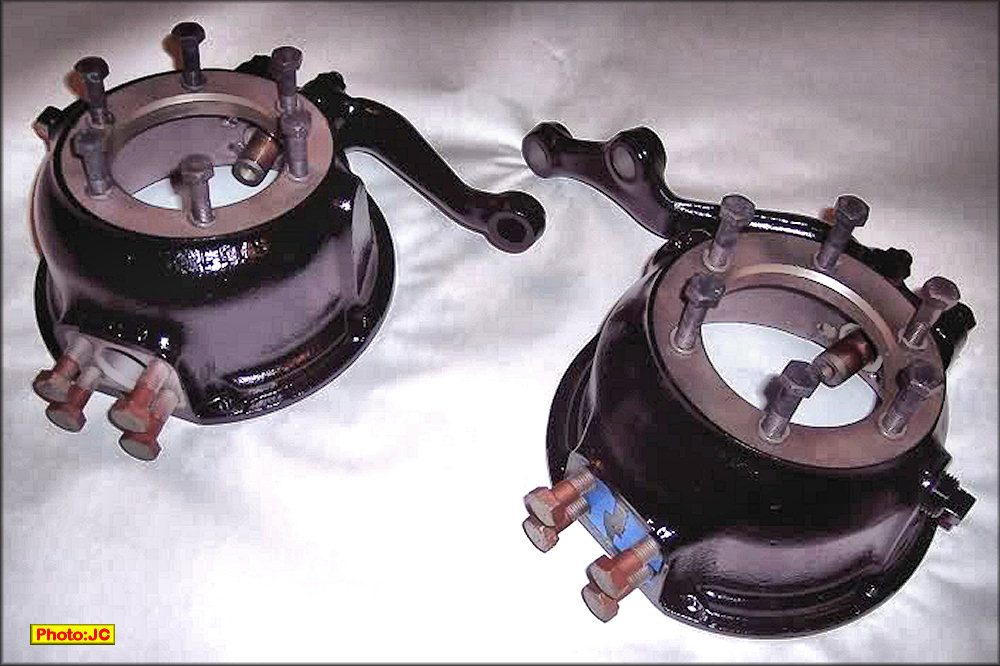

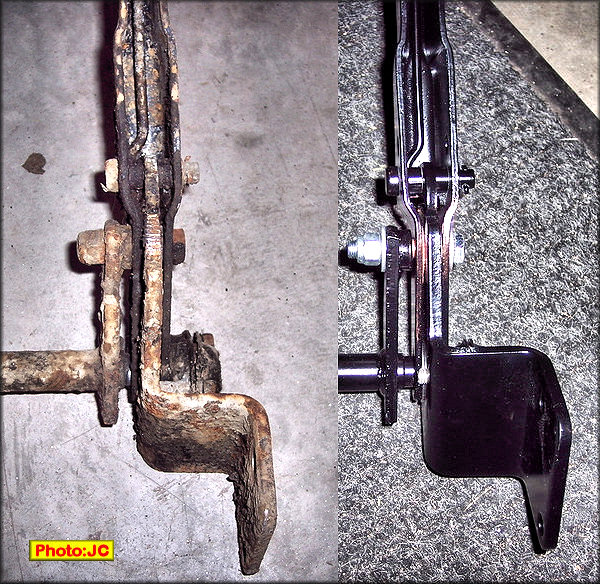

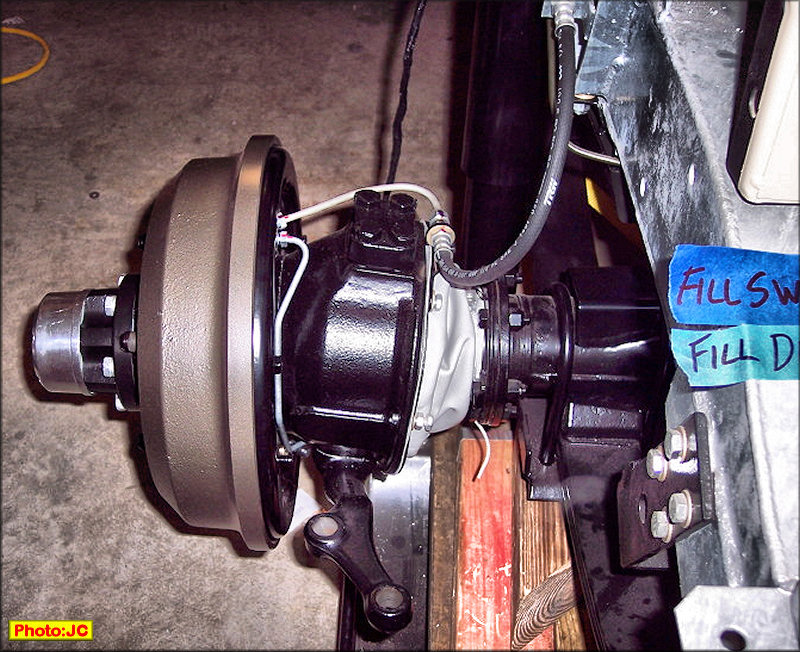

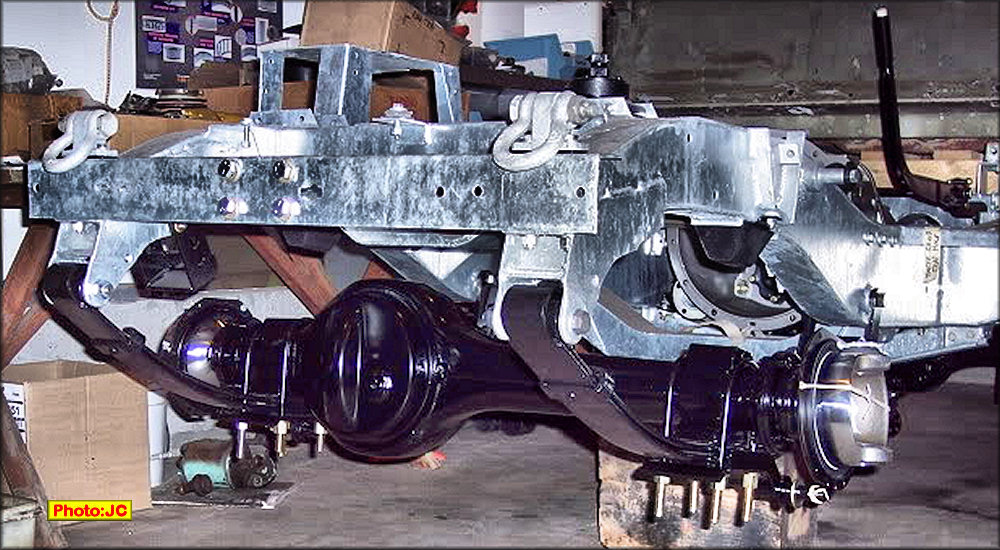

| From this to this! | Front swivel housings (stub axles and wheel hubs mount to these | ||
 |
 |
 |
 |

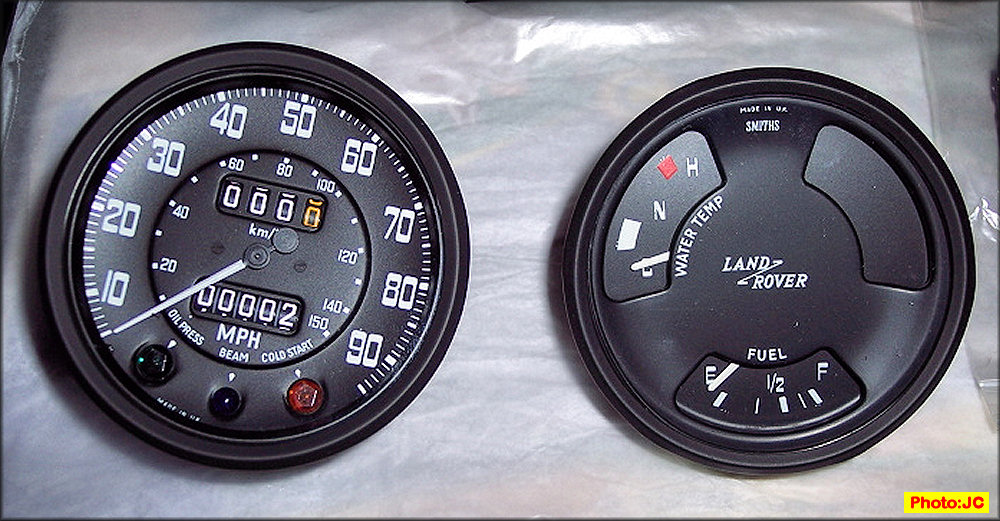

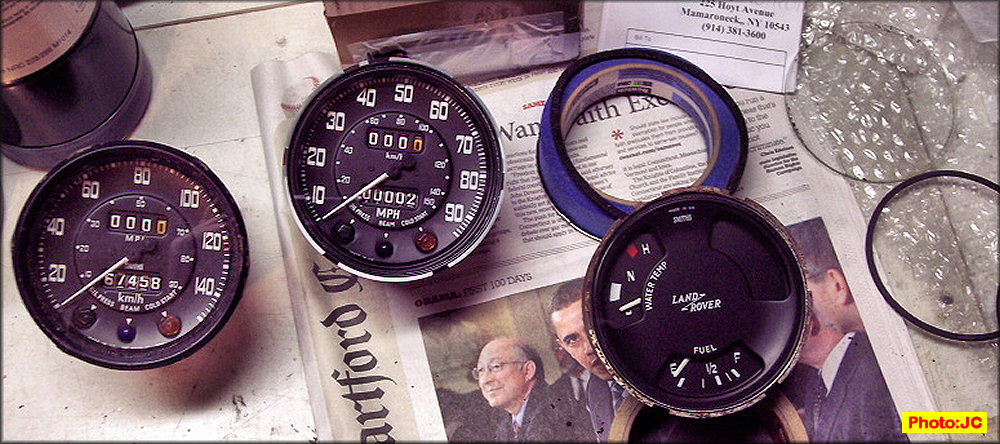

| New MPH speedo for 7.50x16 tires to replace the KM/H unit for 6.00x16 tires | |||
 |
 |
 |
 |

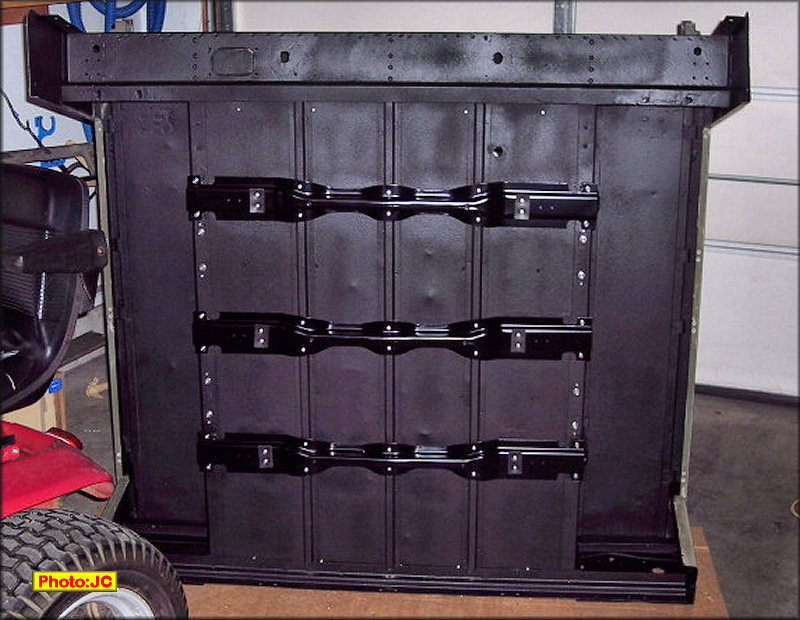

| Pintle hitch broken down and partially cleaned-up | Thoroughly cleaned under side of the tub, coated with several layers of 3M rubberized undercoating, then installed new tub supports | ||
 |
 |
 |
 |
|

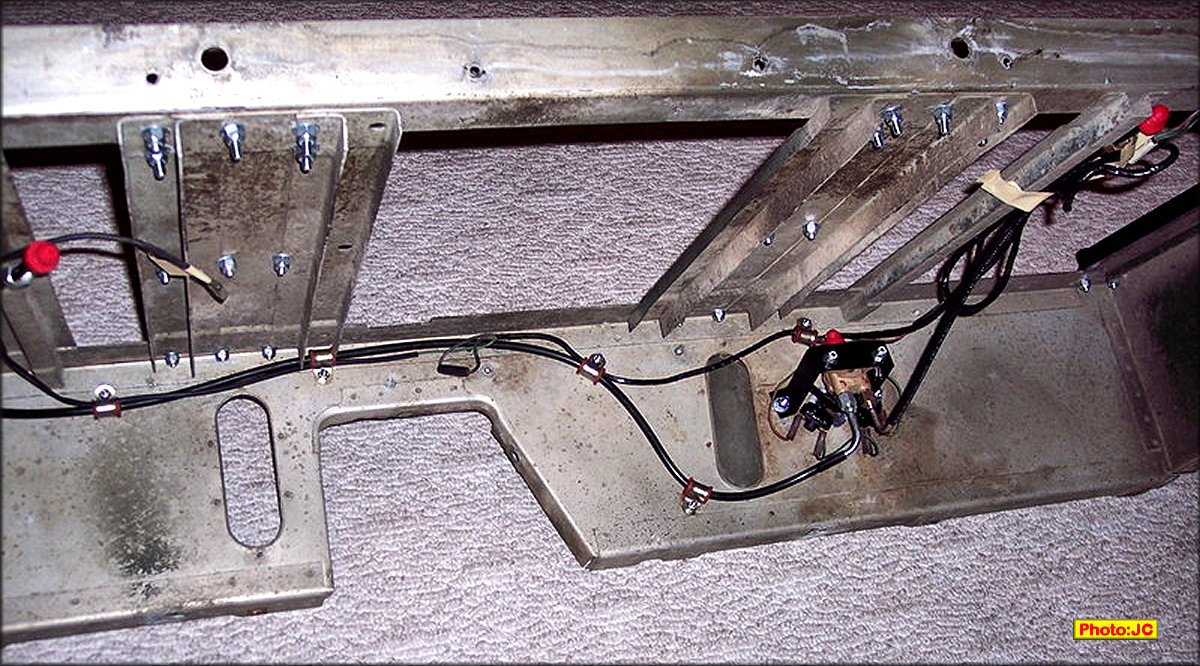

Seat box is now all set to go back on the vehicle. The seat rails,
sandblasted, primed & painted, then install with all new hardware |

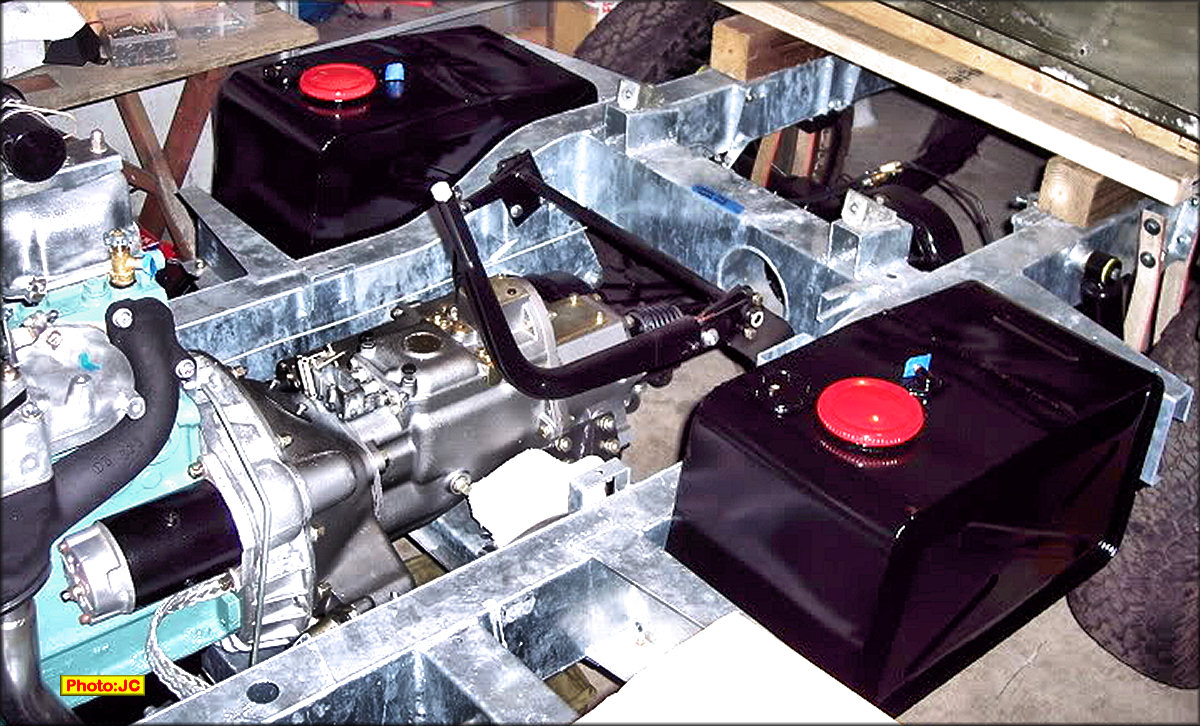

The fuel tanks are now installed, after being
blasted, etch-primed & painted |
||
