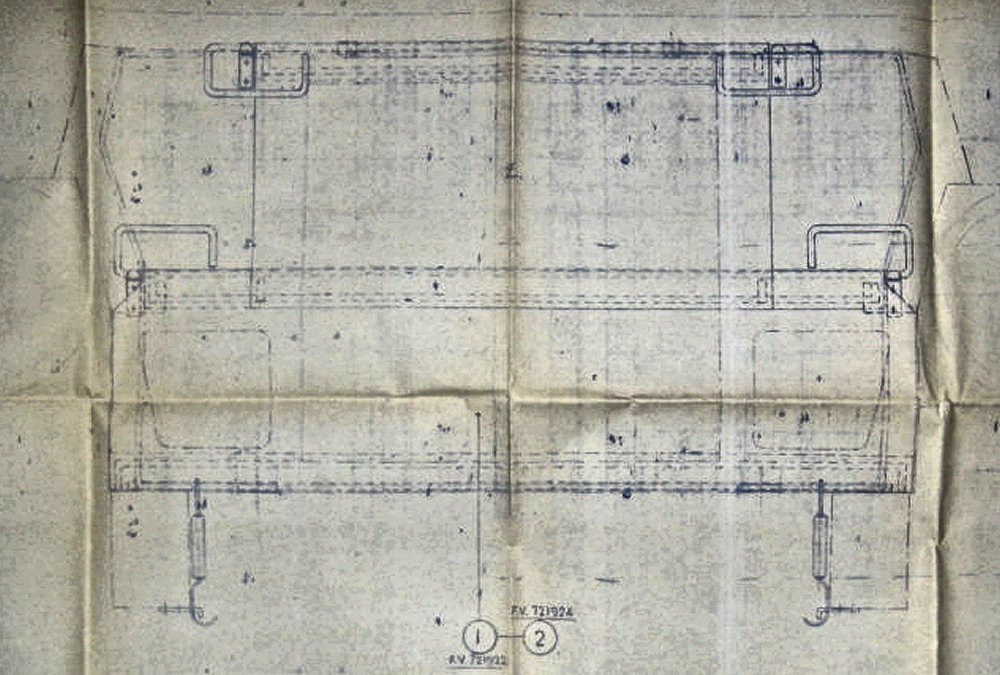

| Original

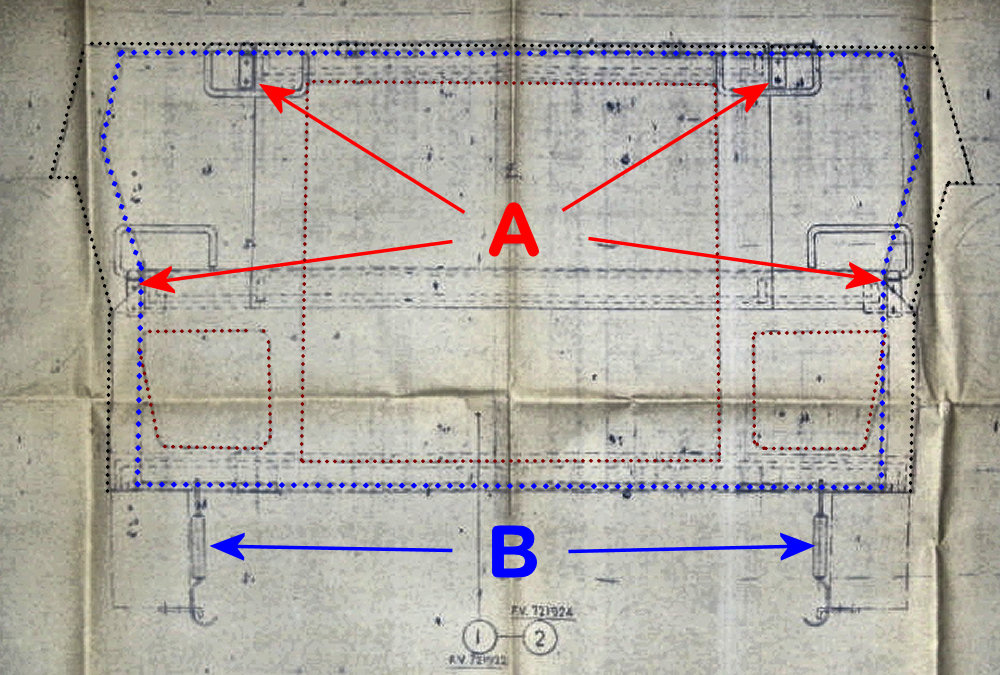

plan
courtesy 'FULLTILT' |
 |
|
|
 |
 |
 |
| Series II

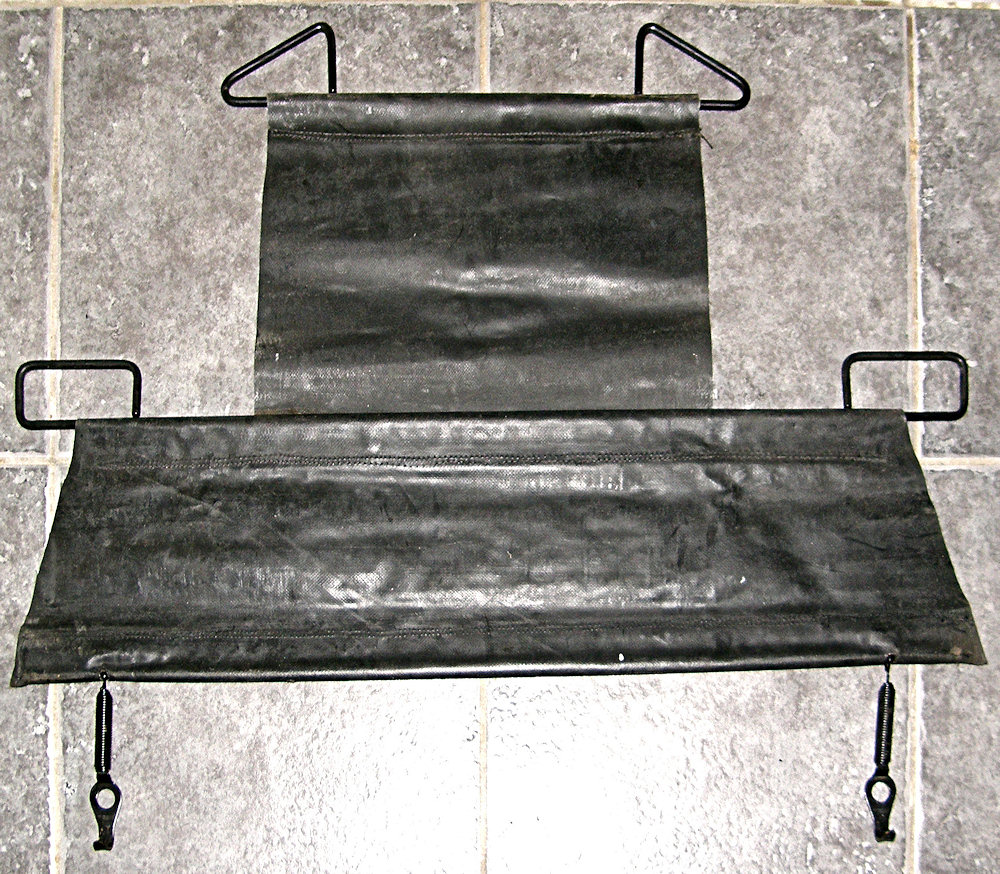

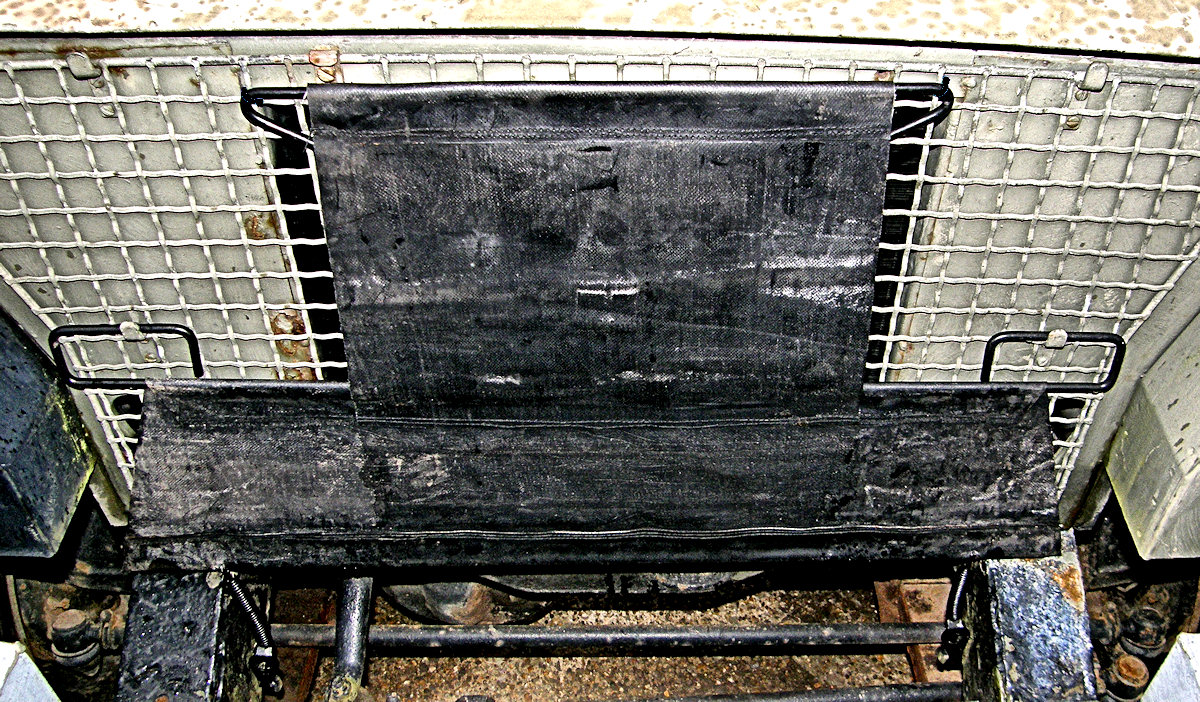

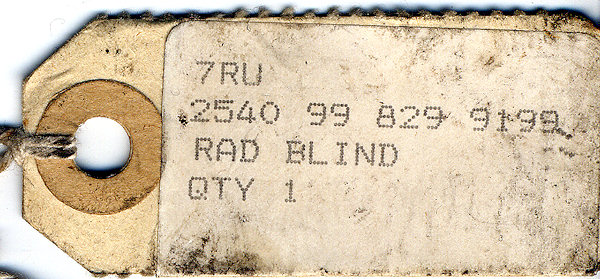

Lightweight Radiator Muff |
 |
 |
 |
|
|
|
 |
 |
 |
| Note

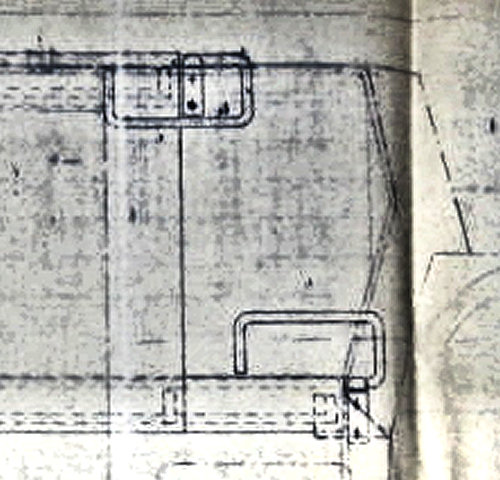

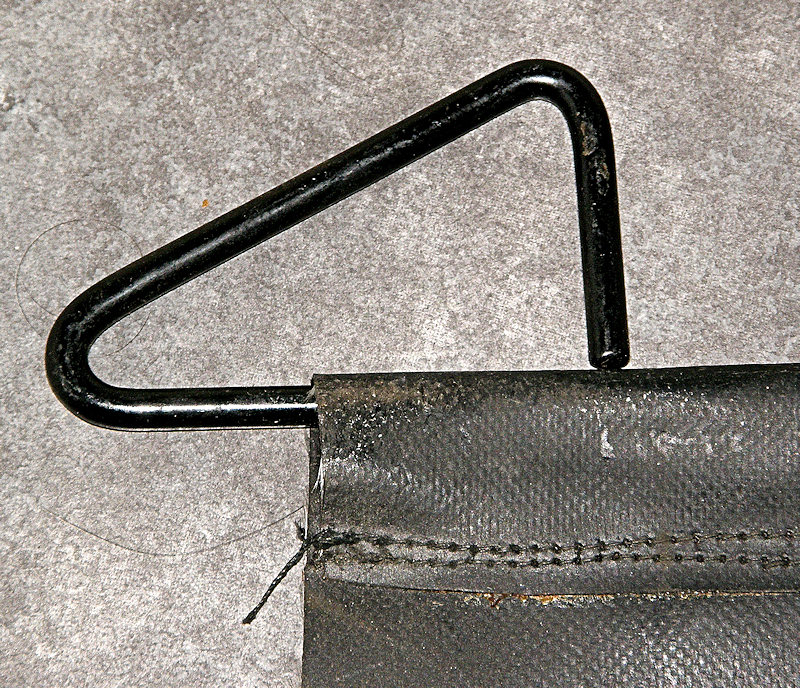

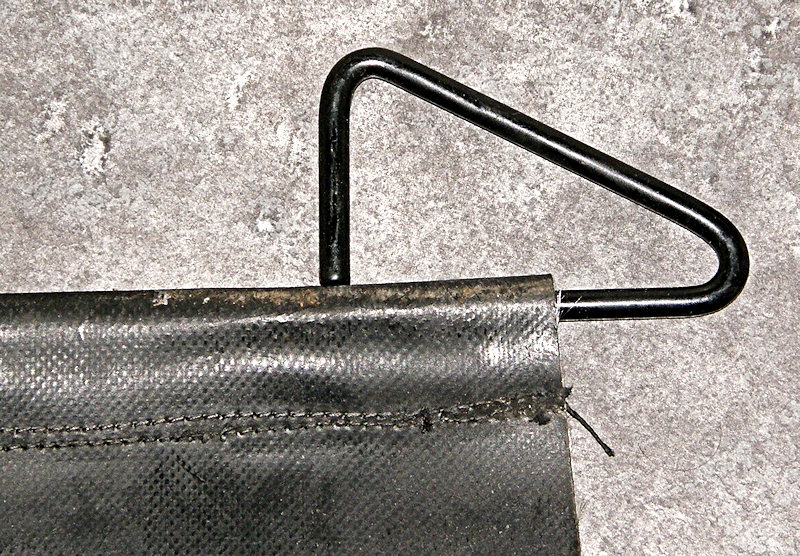

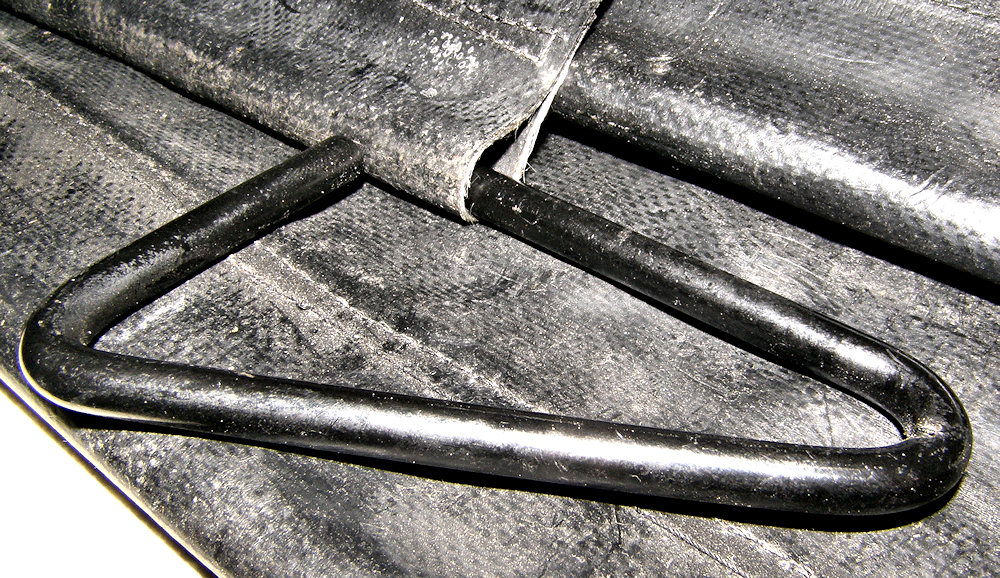

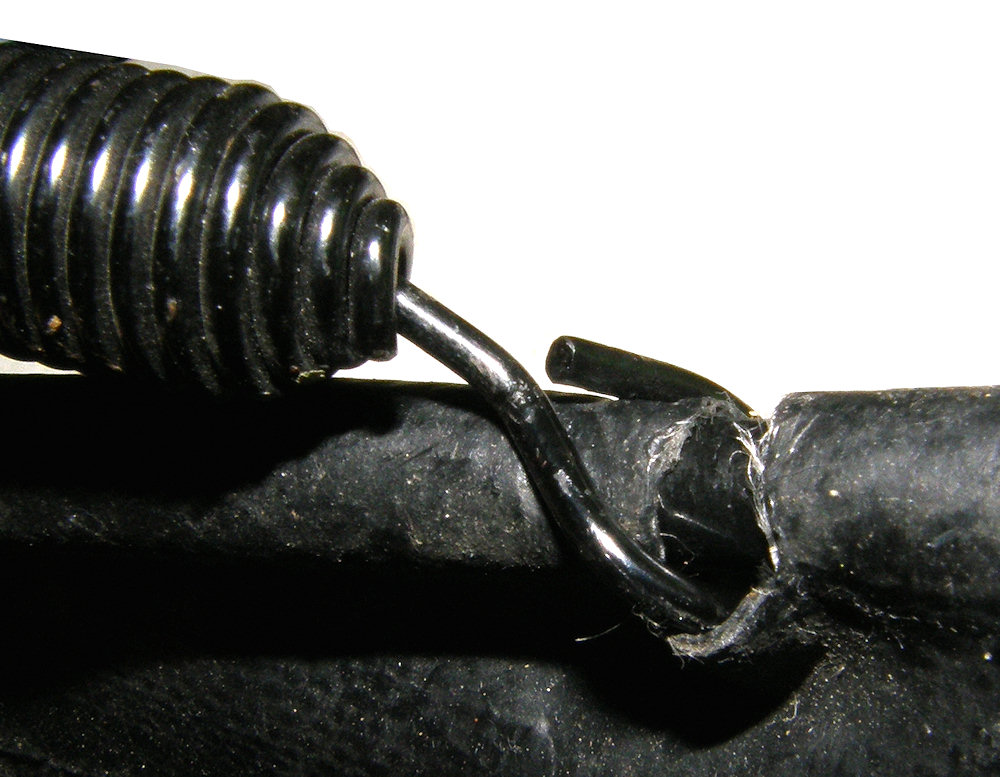

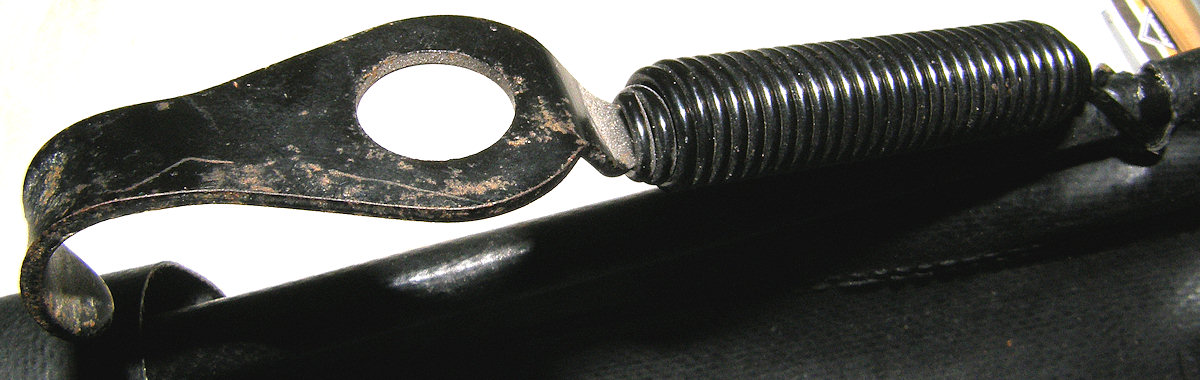

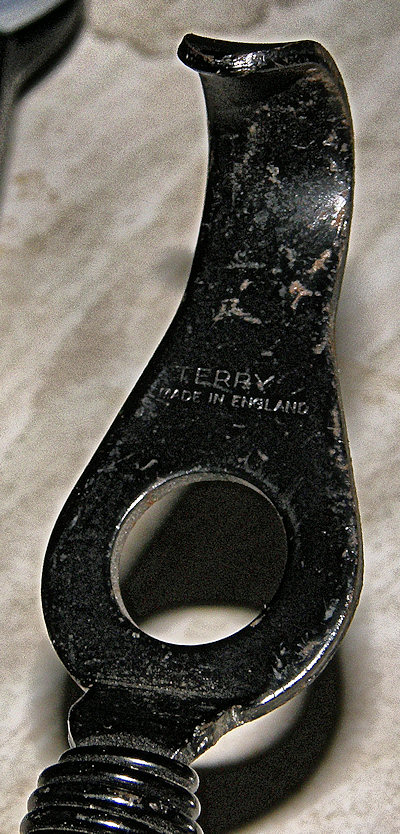

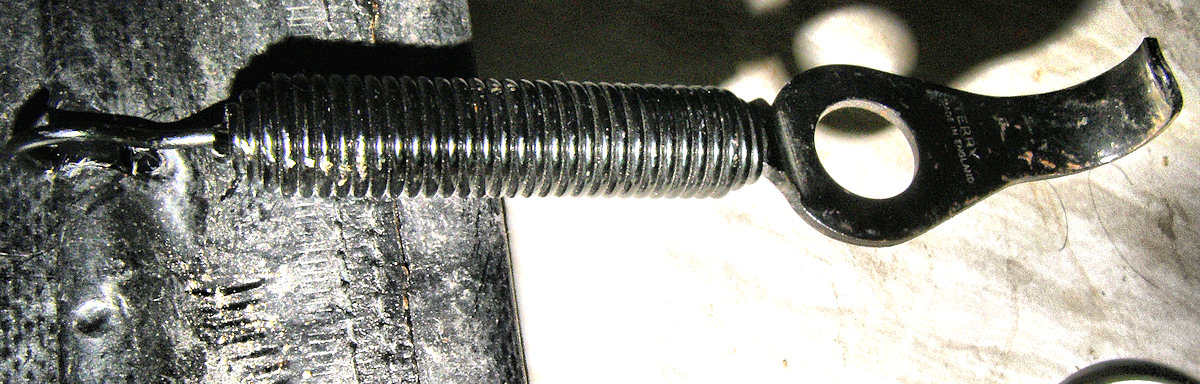

differences from plan: top metal 'hooks' are triangular. Bottom fabric
panel is trapezium shape |
 |
 |
 |
|
|
|
 |
 |
 |

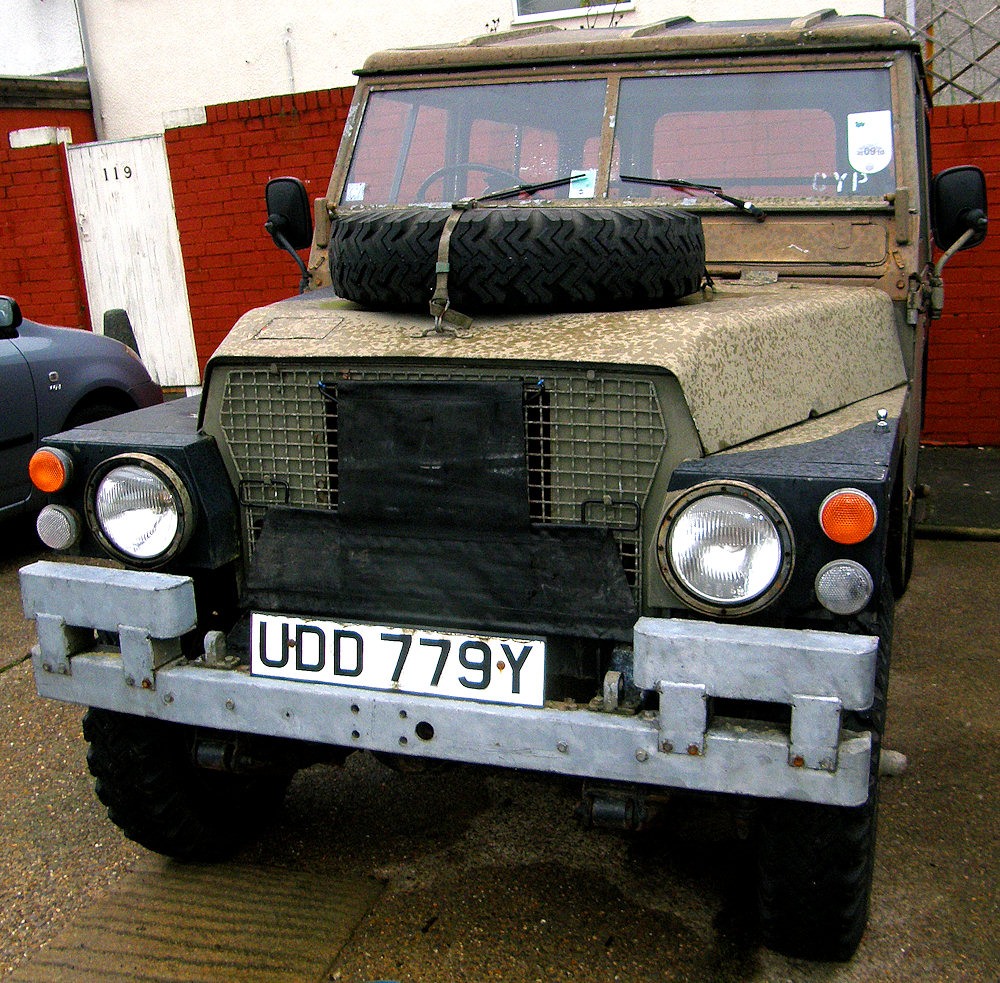

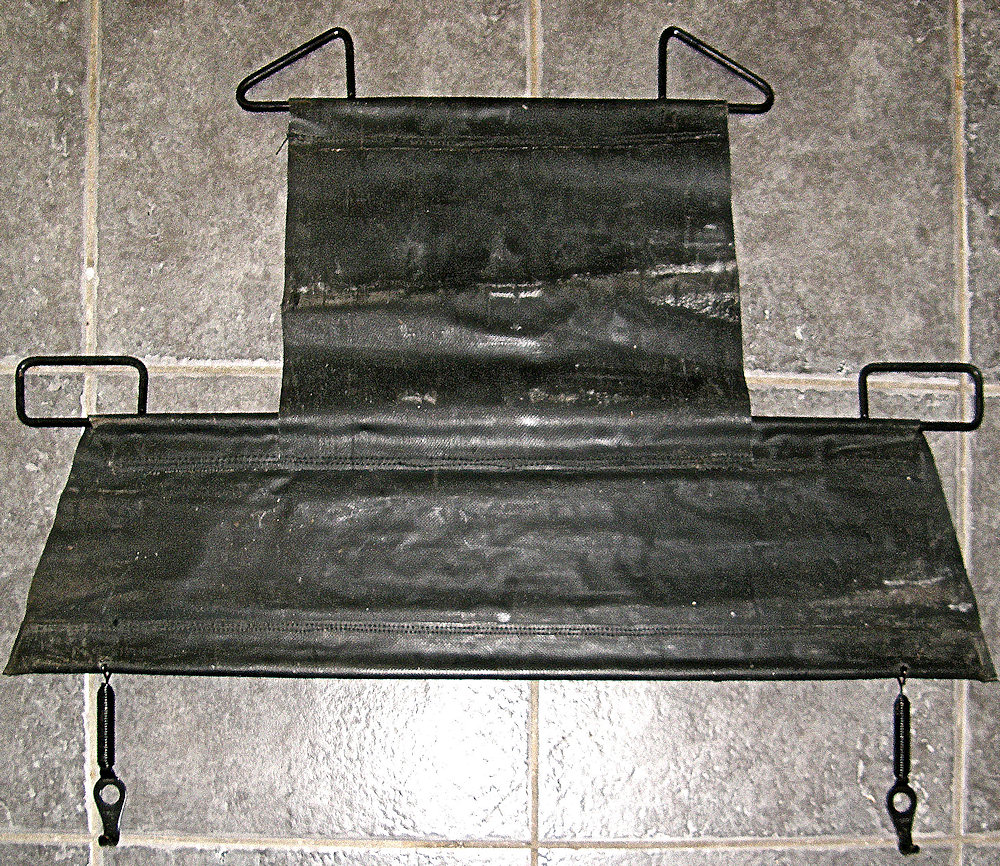

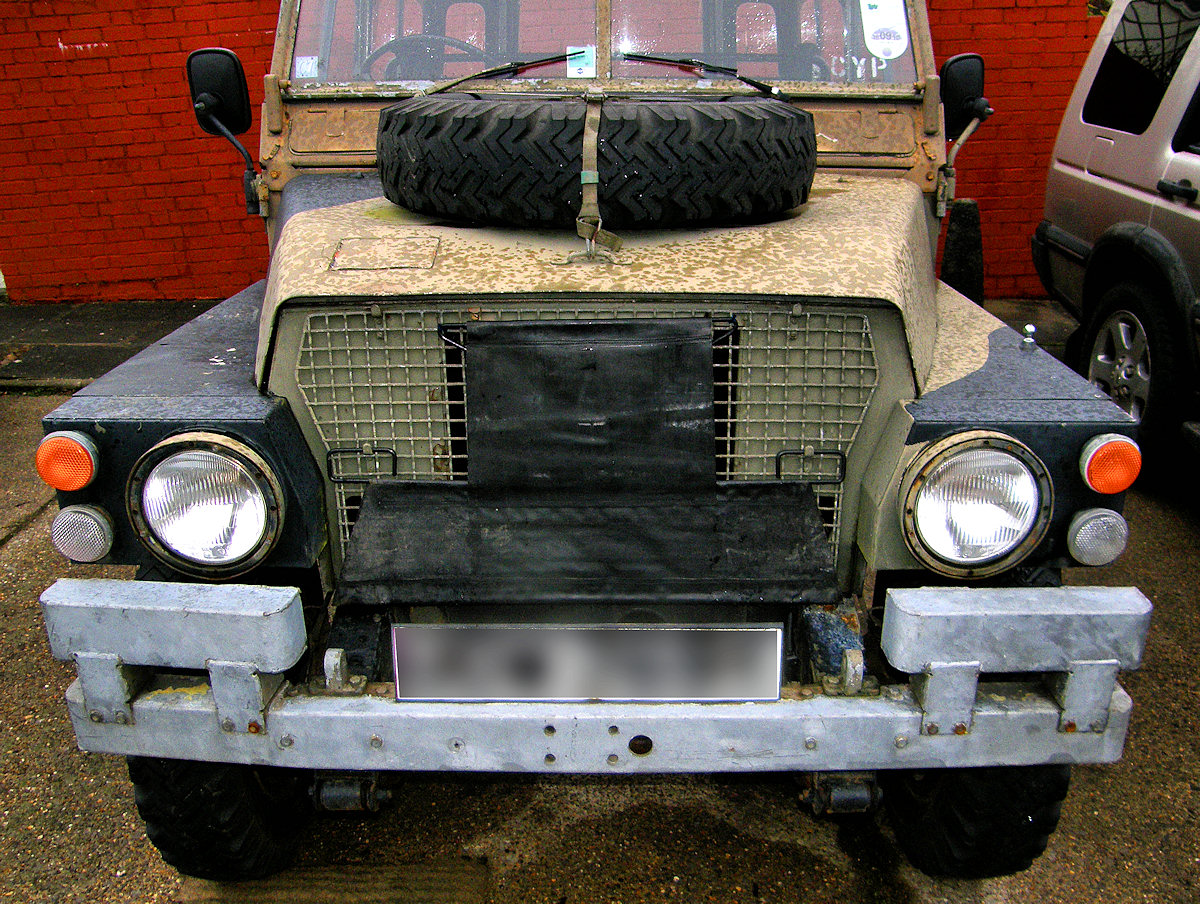

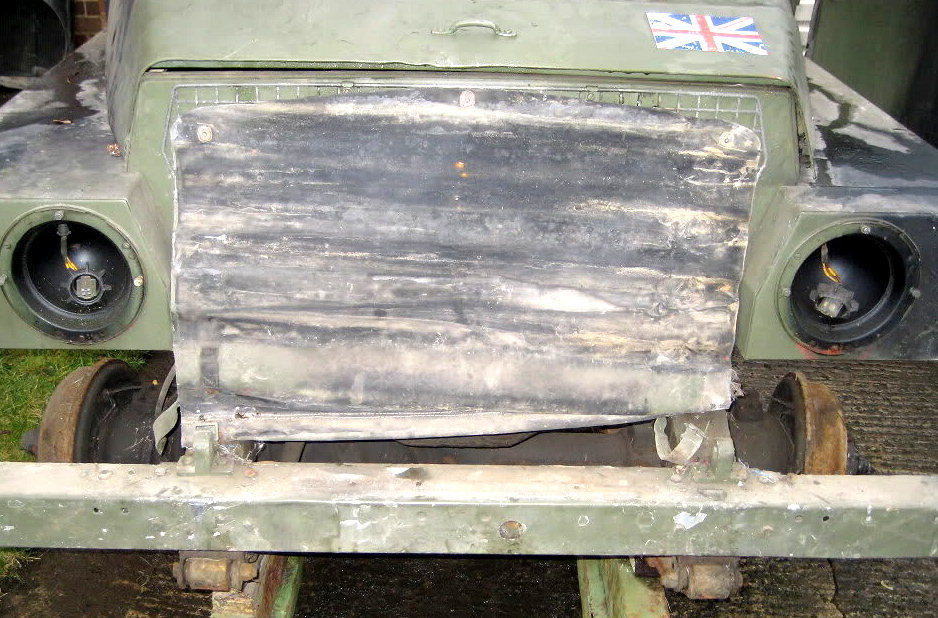

| Series II

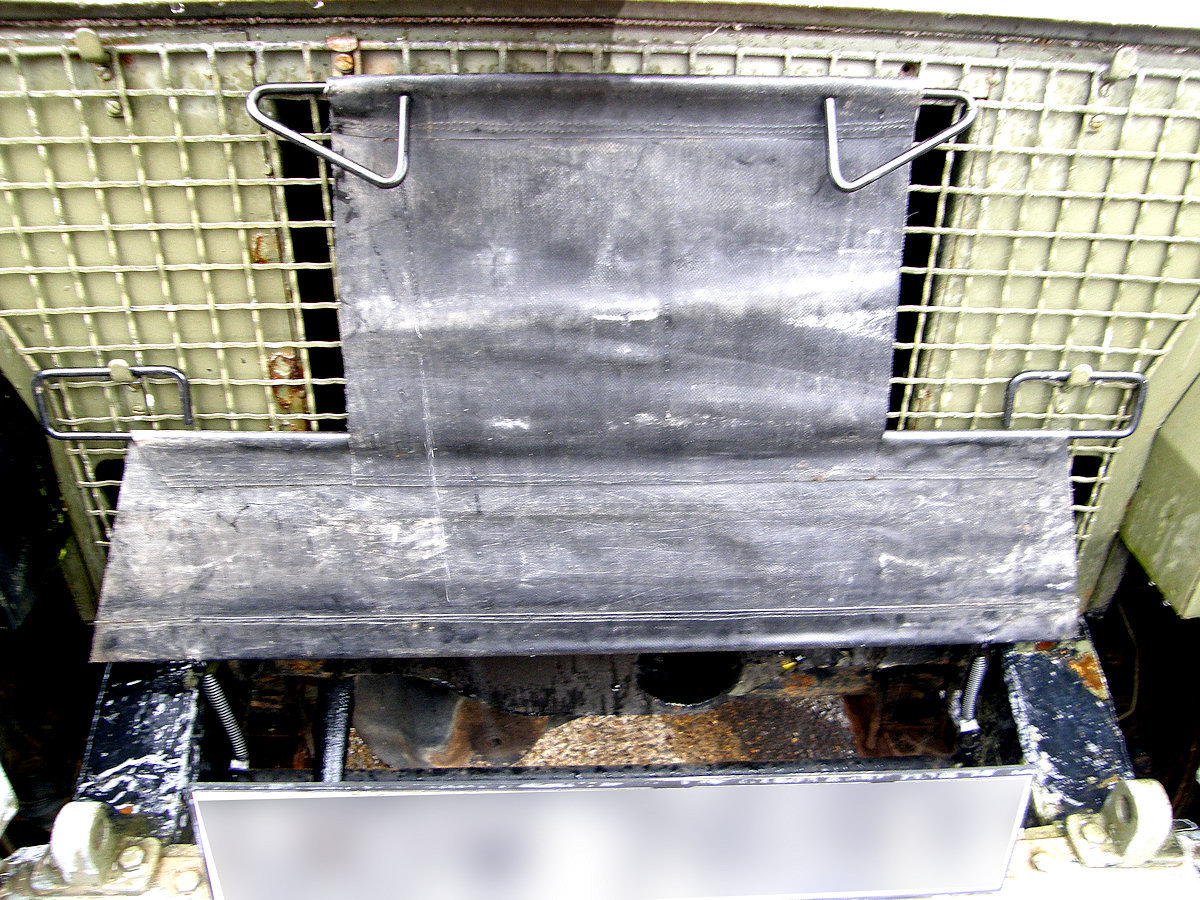

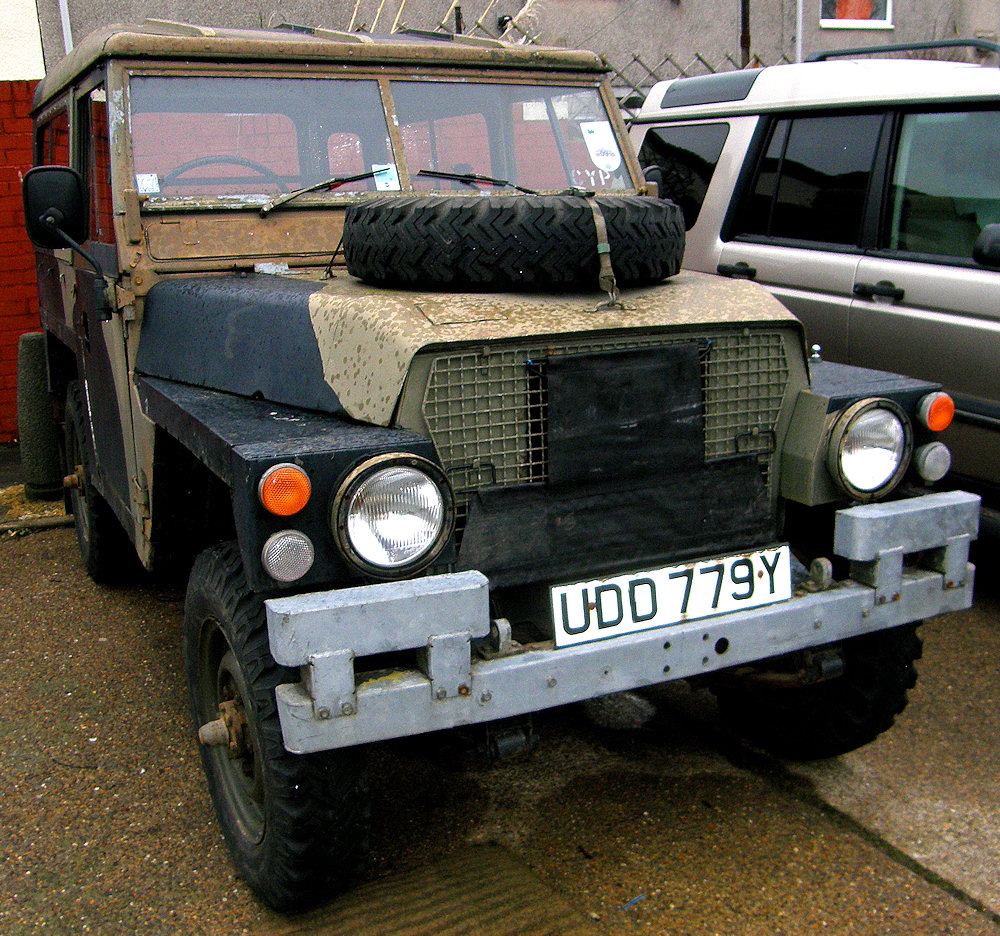

Muff on my Series III Lightweight |
 |
 |
 |

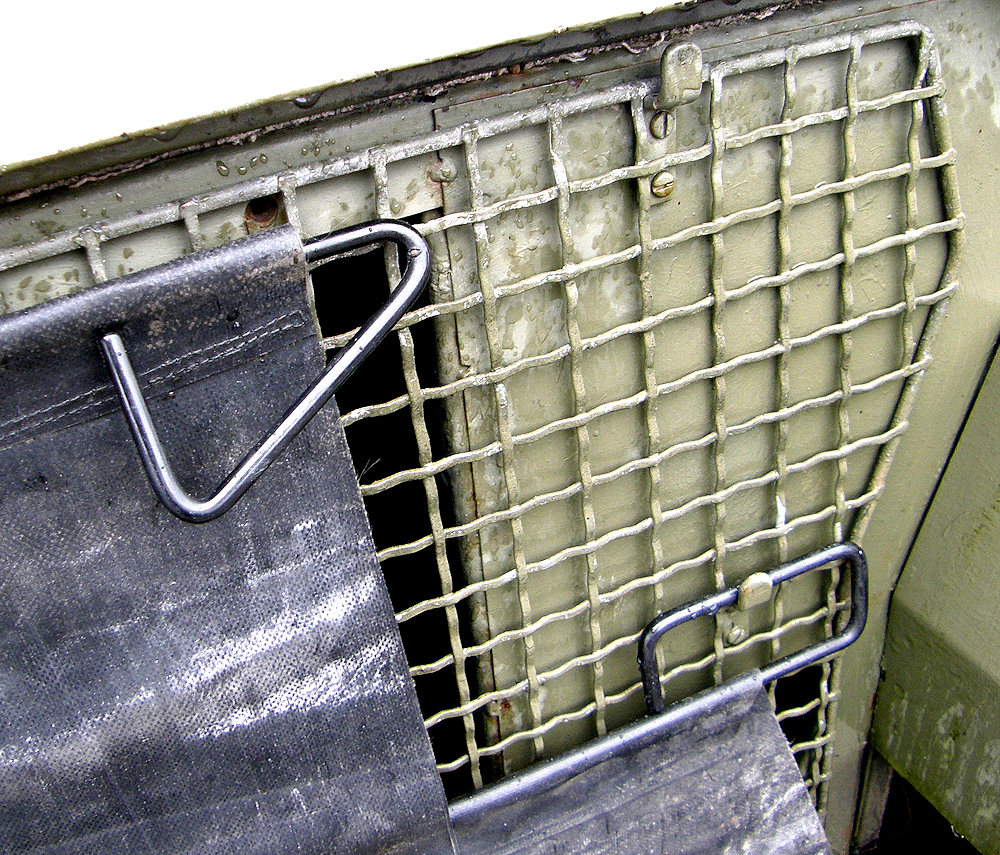

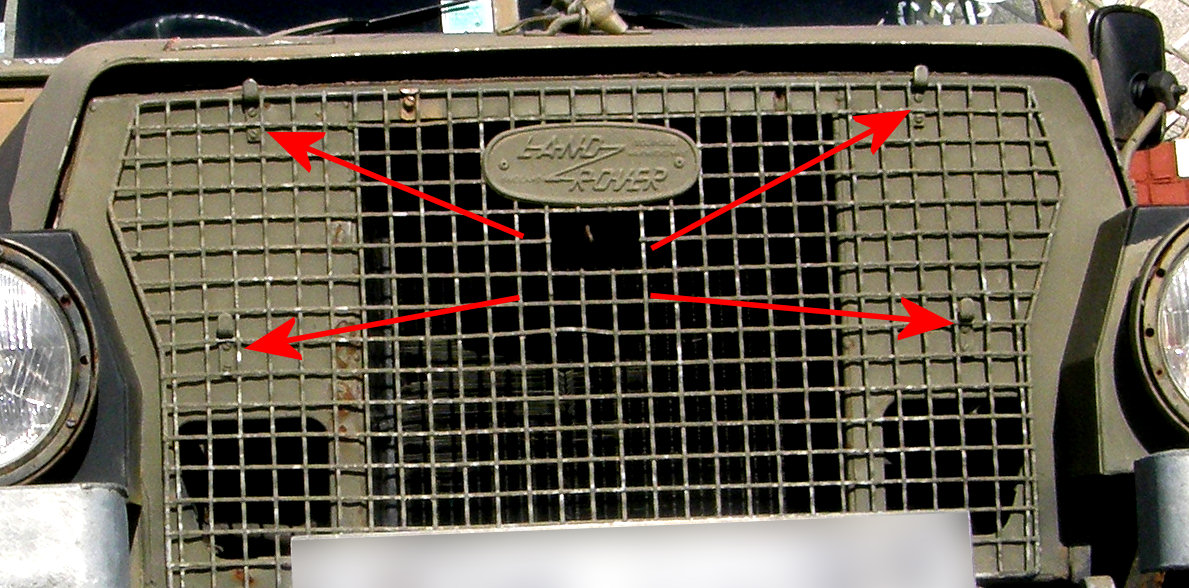

| No suitable
top mounting cleats available |
 |
 |
 |
|
|
|
|
 |
 |
 |
|
|
|
|
 |
 |
 |
|

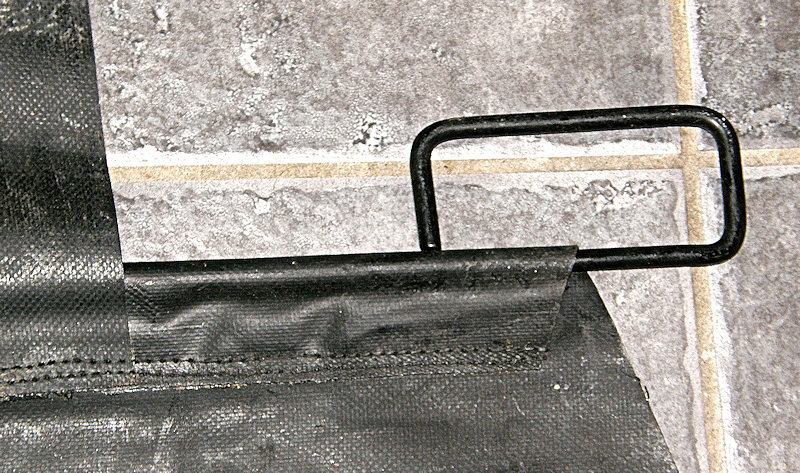

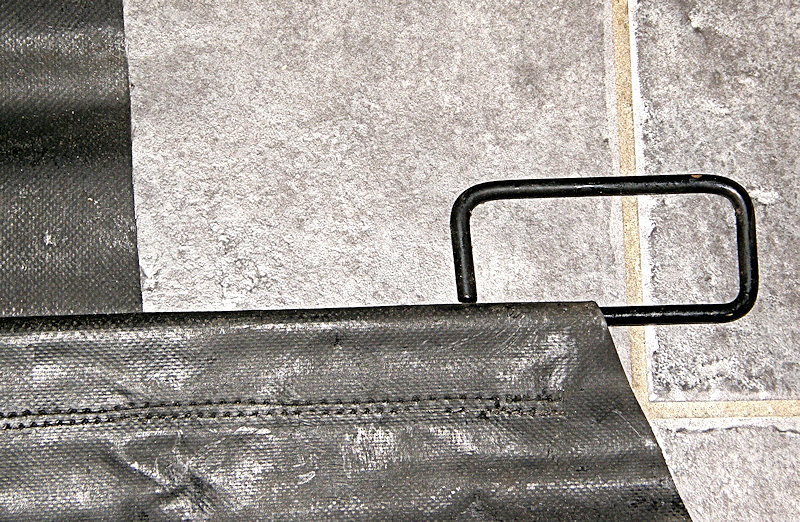

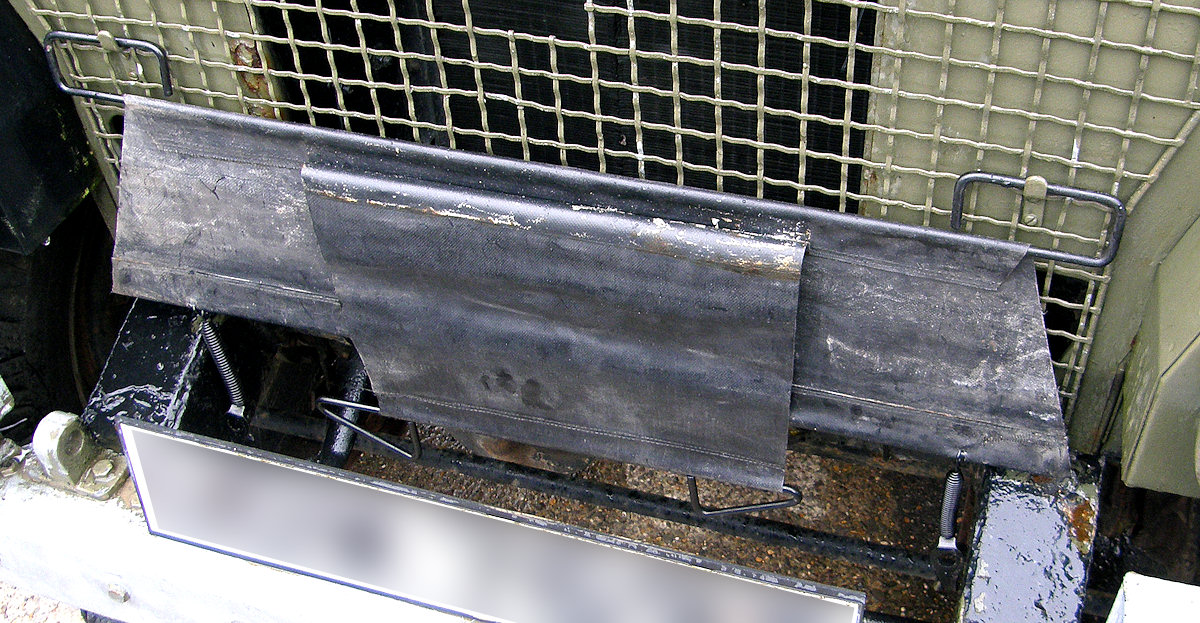

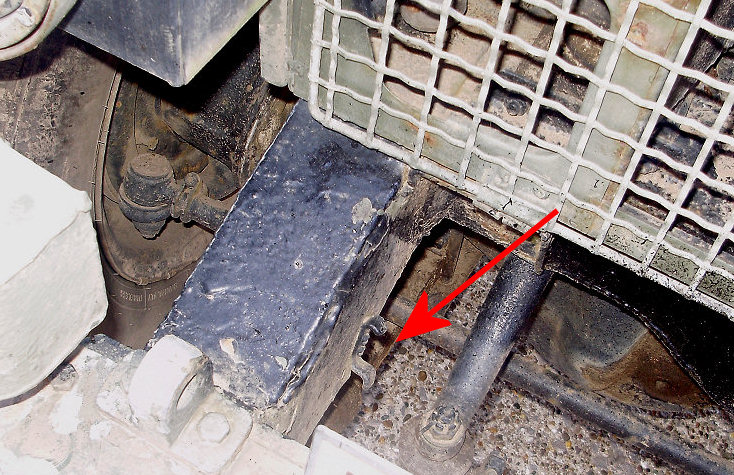

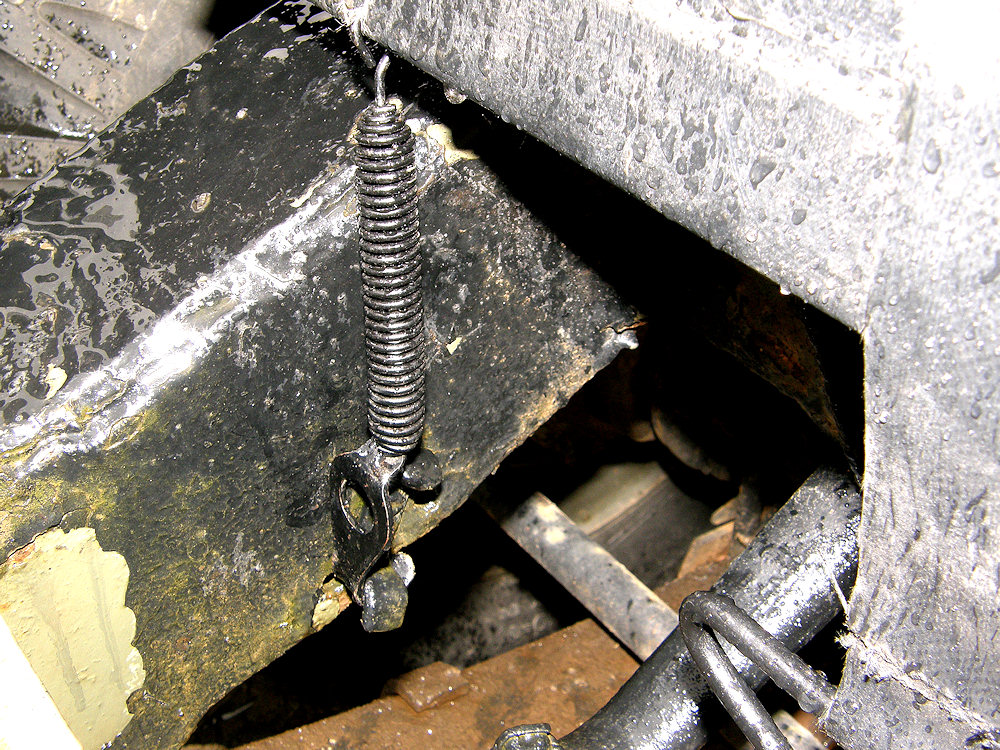

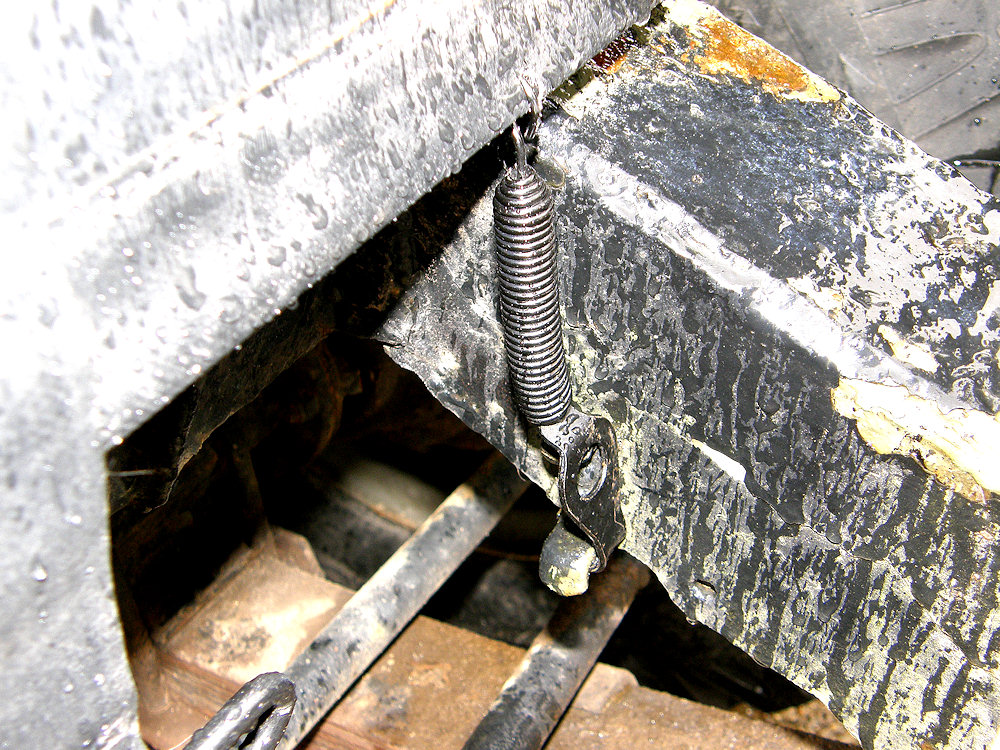

Upper and lower positions of hooks on my Lightweight |
 |
 |
 |

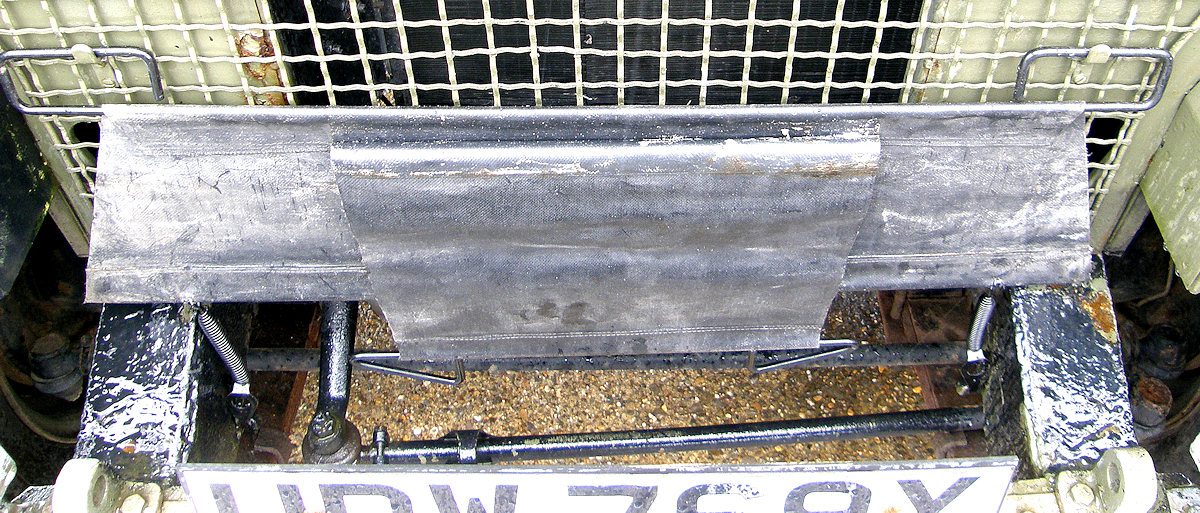

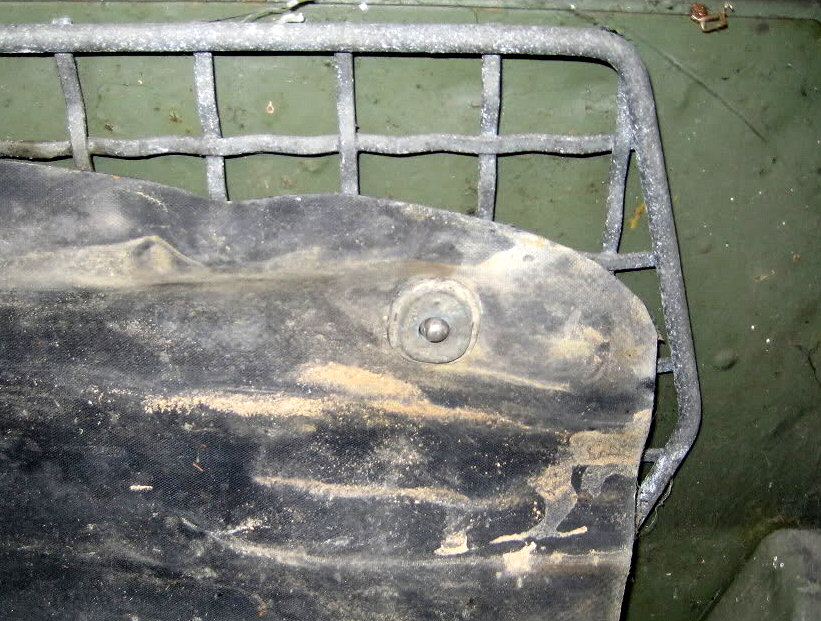

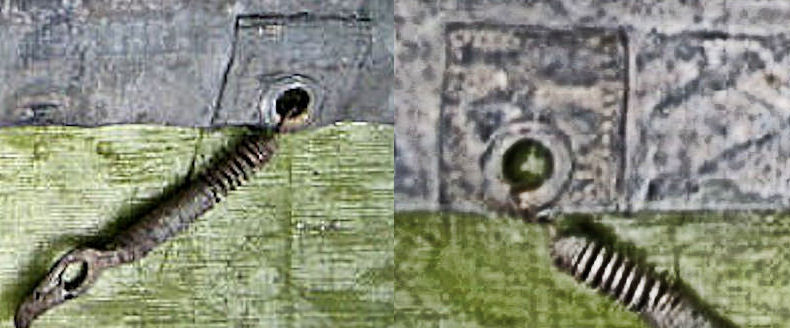

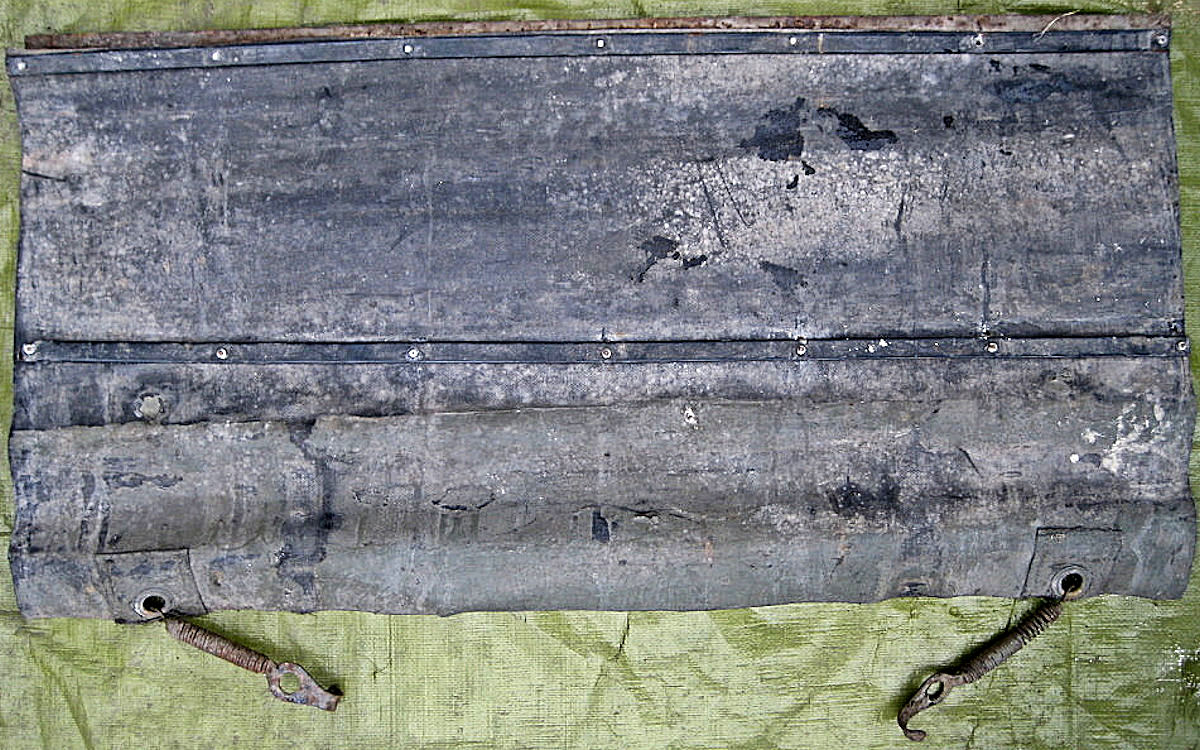

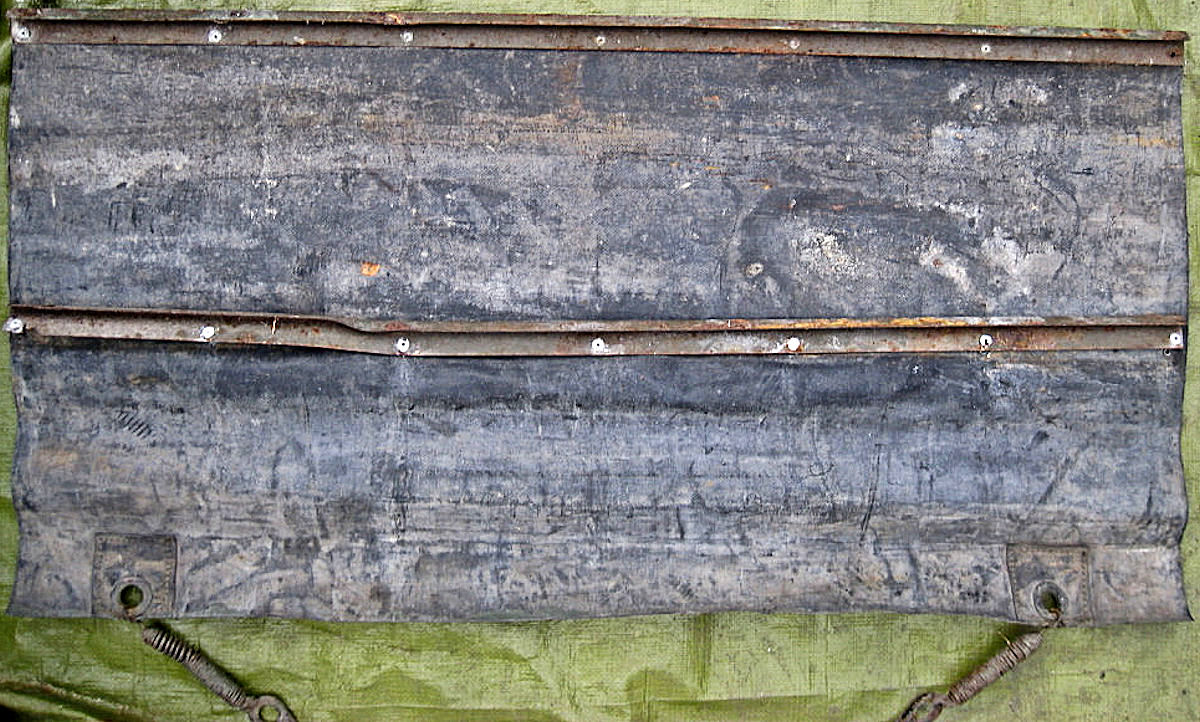

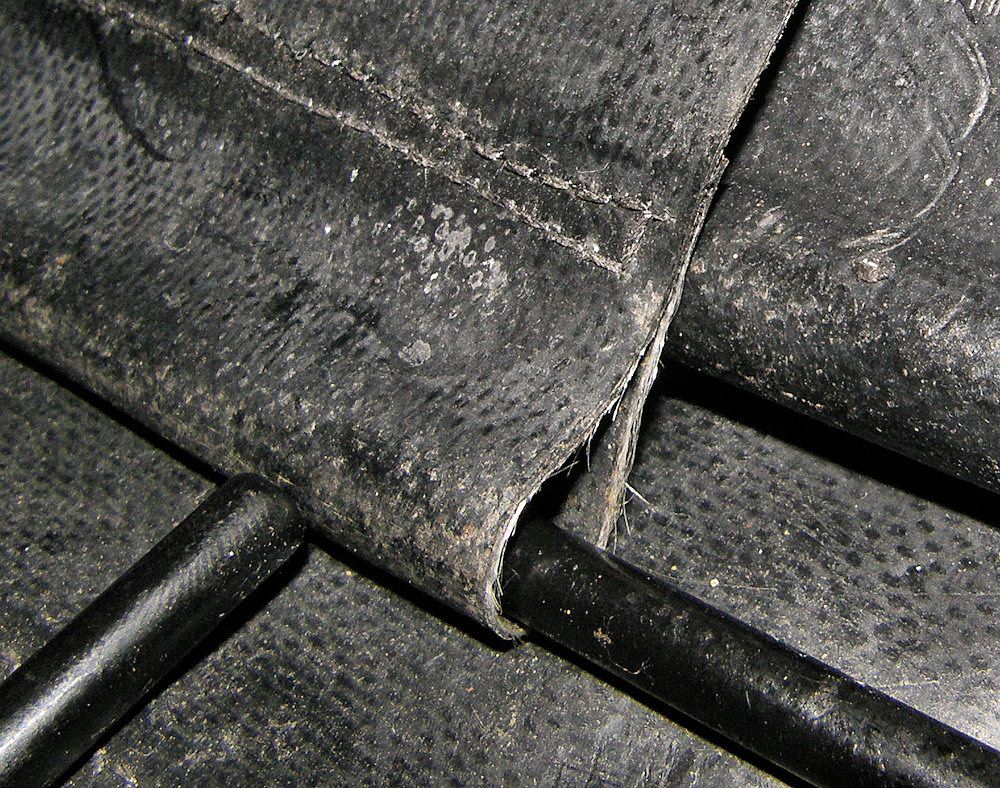

| Unusual rubberized sheet with press stud fixing |
|
 |
 |
 |
Another version for a Series 3 Lightweight. Was
this the 'normal' one?

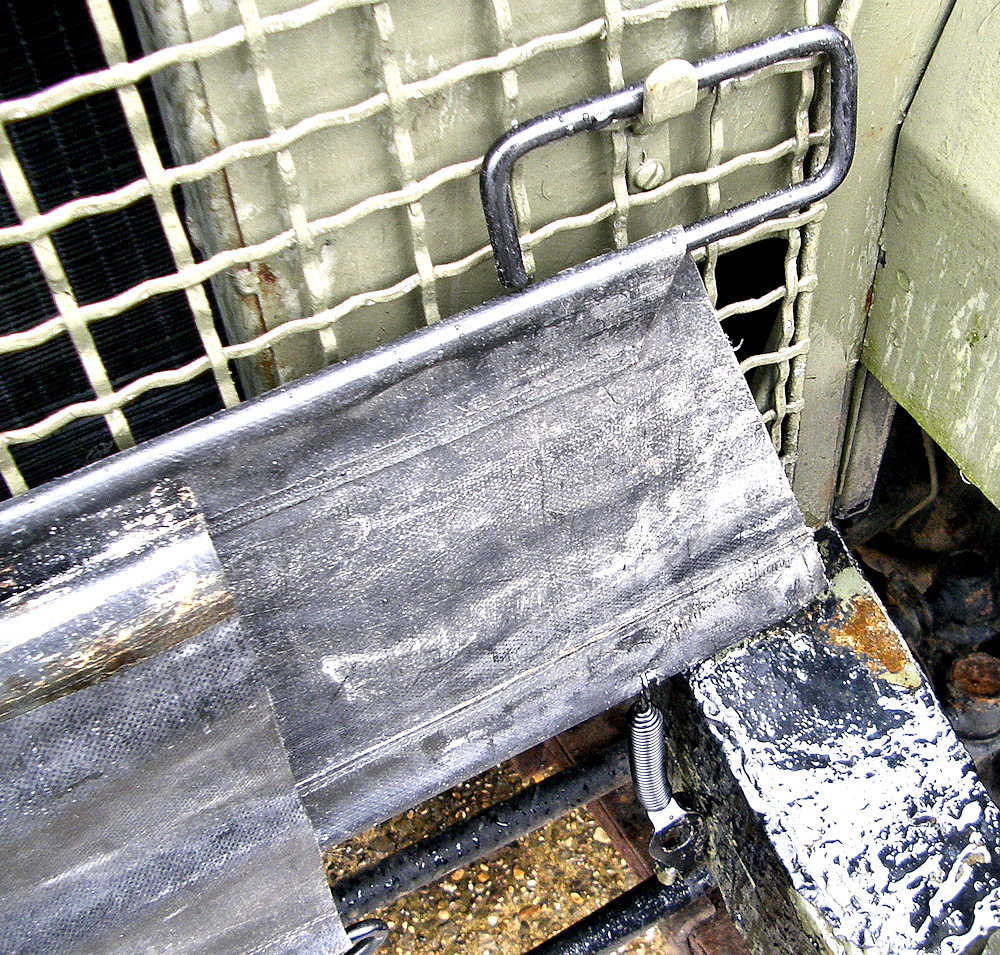

Very simple method of mounting and explains why the width between the
cleats on the radiator panel did not matter. |
 |
|
 |

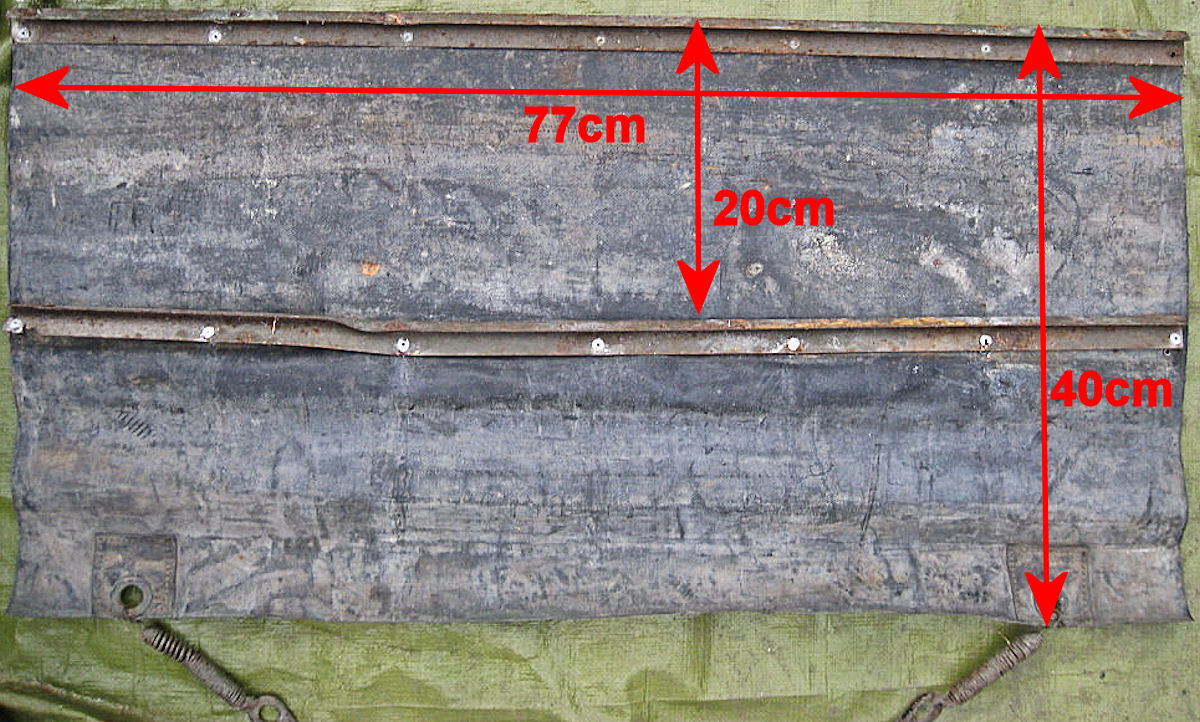

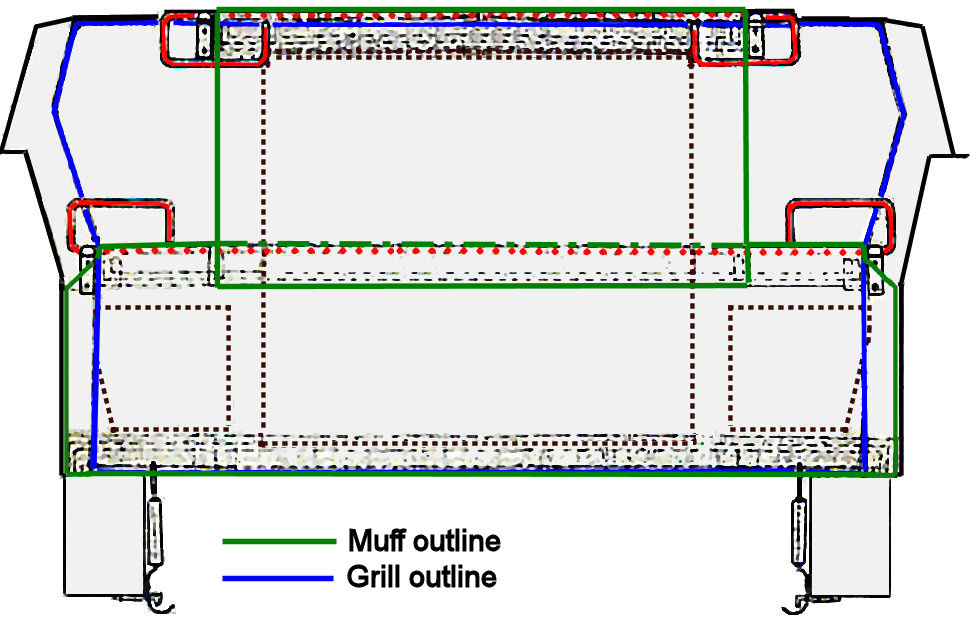

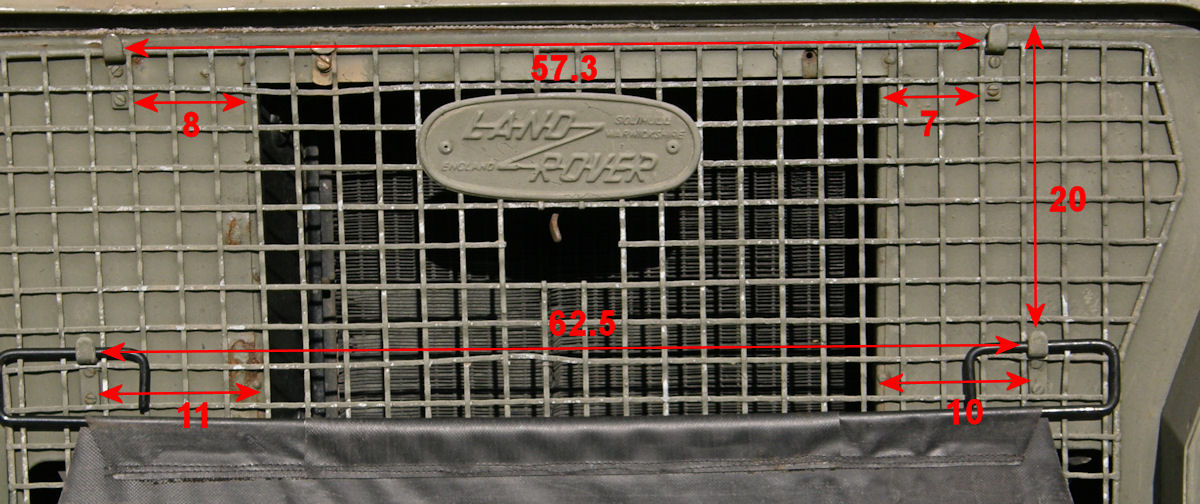

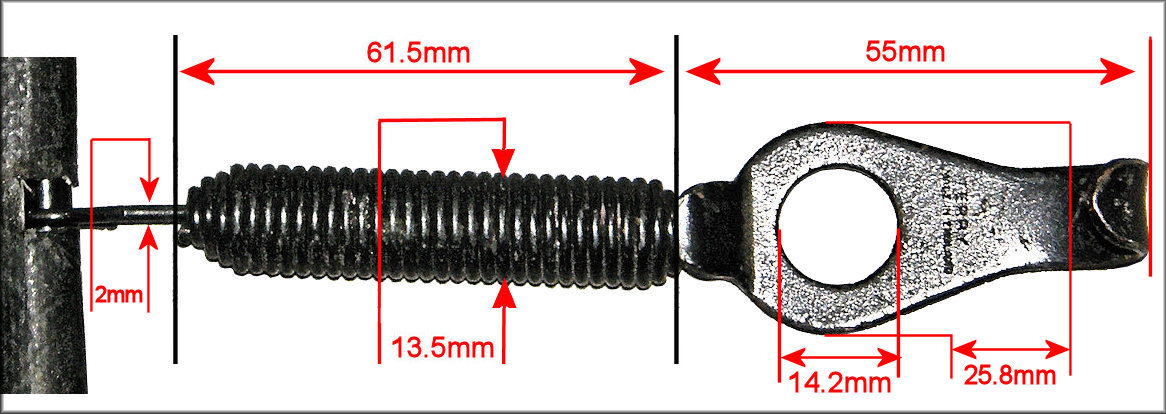

| Scaled dimensions from
photo |
|

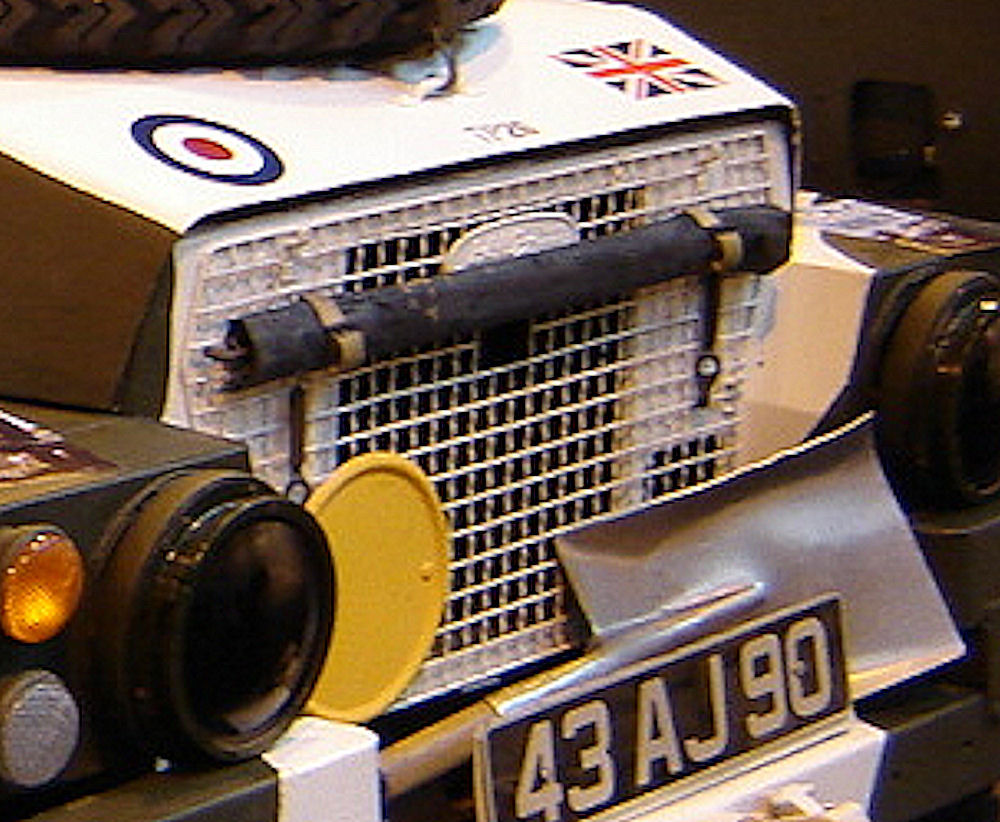

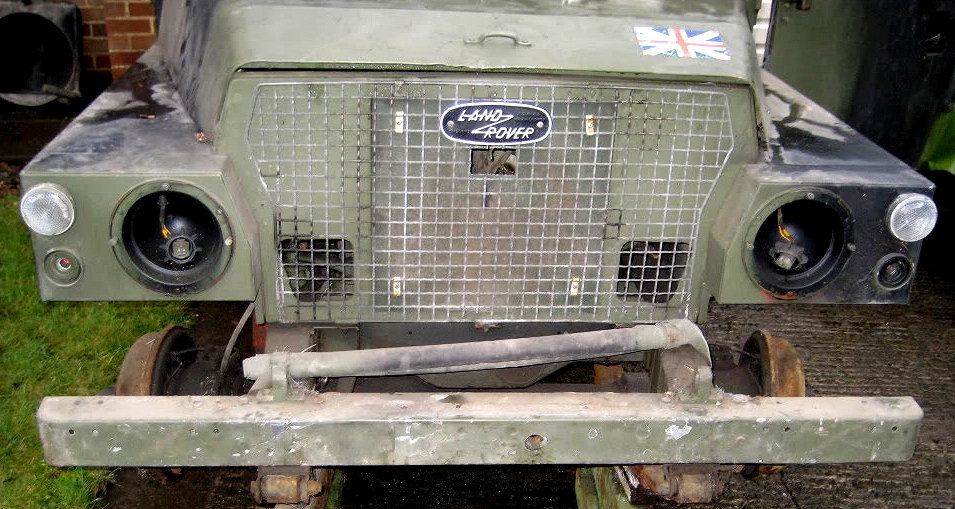

Photo anon. of this
Muff |
